05586.R5.02

Active

Prysmian Group

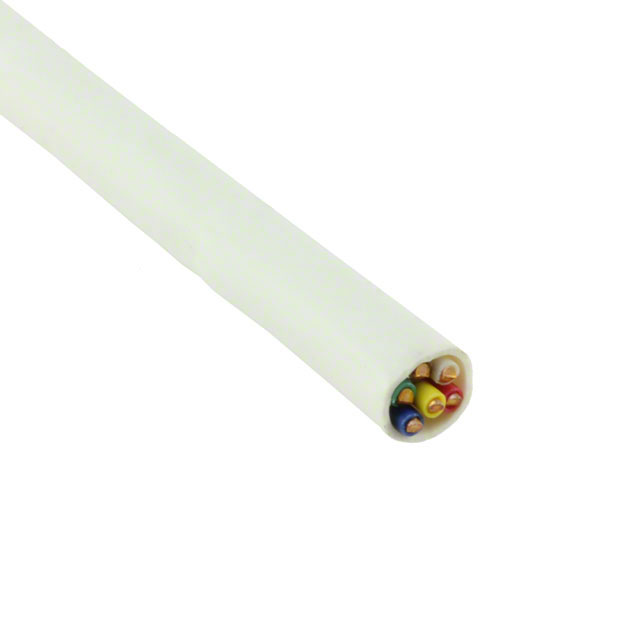

CABLE 6COND 18AWG WHITE

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 6COND 18AWG WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	05586.R5.02

Cable Type	Multi-Conductor
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	0.208 in
Jacket (Insulation) Diameter [diameter]	5.28 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.203 mm
Jacket (Insulation) Thickness	0.008 in
Length	3000 "
Length	76.2 m
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	6
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Voltage	150 V
Wire Gauge	18 AWG

Part	Number of Conductors	Length [x]	Length [x]	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Material	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand	Cable Type	Conductor Insulation	Jacket Color
Prysmian Group 05586.R5.02	6	30.5 m	100 ft	150 V	0.208 in	5.28 mm	Poly-Vinyl Chloride (PVC)	Copper Bare	3000 "	76.2 m	-20 C	60 °C	18 AWG	0.203 mm	0.008 in	Solid	Multi-Conductor
Prysmian Group 05586.41.02	6			150 V	0.208 in	5.28 mm	Poly-Vinyl Chloride (PVC)	Copper Annealed Bare	1000 ft	304.8 m	-20 C	105 ░C	18 AWG	0.203 mm	0.008 in	Solid	Multi-Conductor	Poly-Vinyl Chloride (PVC)
Prysmian Group 05586.15.08	6	30.5 m	50 ft 100 ft	150 V	0.208 in	5.28 mm	Poly-Vinyl Chloride (PVC)	Copper Bare	3000 "	15.24 m 76.2 m	-20 C	60 °C	18 AWG	0.203 mm	0.008 in	Solid	Multi-Conductor		Brown

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable White 18 AWG 250.0' (76.2m)

Technical documentation and resources

No documents available
