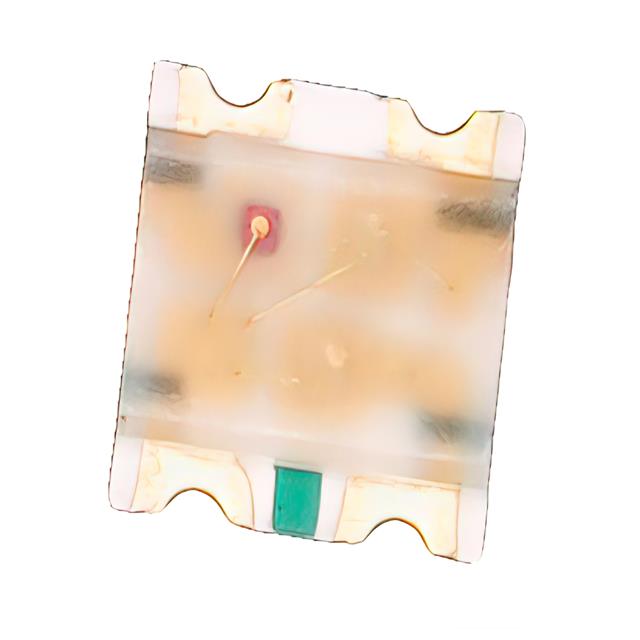

QBLP600-RGB5-3164

Active

QT Brightek (QTB)

LED RGB DIFFUSED 4SMD

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED RGB DIFFUSED 4SMD

Technical Specifications

Parameters and characteristics for this part

Specification	QBLP600-RGB5-3164

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	5 mA
Current - Test [custom]	5 mA
Current - Test [custom]	5 mA
Height (Max) [Max]	0.9 mm
Lens Color	White
Lens Size [x]	1.1 mm
Lens Size [y]	1.5 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Diffused
Millicandela Rating [custom]	35 mcd
Millicandela Rating [custom]	34 mcd
Millicandela Rating [custom]	230 mcd
Mounting Type	Surface Mount
Package / Case	0606, 1616 Metric
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	1.5 mm
Supplier Device Package	4-SMD
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ) [custom]	1.9 V
Voltage - Forward (Vf) (Typ) [custom]	2.8 V
Voltage - Forward (Vf) (Typ) [custom]	2.8 V
Wavelength - Dominant [custom]	470 nm
Wavelength - Dominant [custom]	620 nm
Wavelength - Dominant [custom]	528 nm

Part	Supplier Device Package	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Color	Lens Style	Viewing Angle	Package / Case	Mounting Type	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Height (Max) [Max]	Lens Size [x]	Lens Size [y]	Color	Configuration	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Current - Test	Height (Max) [Max] [z]	Millicandela Rating	Package / Case
QT Brightek (QTB) QBLP600-RGB5-3164	4-SMD	Diffused	1.5 mm	1.6 mm	1.9 V	2.8 V	2.8 V	35 mcd	34 mcd	230 mcd	White	Rectangle with Flat Top	140 °	0606 1616 Metric	Surface Mount	5 mA	5 mA	5 mA	470 nm	620 nm	528 nm	0.9 mm	1.1 mm	1.5 mm	Blue Green Red	Common Anode
QT Brightek (QTB) QBLP600-RAG	0606	Clear	1.5 mm	1.6 mm							Colorless	Rectangle with Flat Top			Surface Mount								1.1 mm	1.5 mm	Red Yellow-Green	Independent	2.1 V 2.1 V	570 nm 640 nm	20 mA 20 mA	0.8 mm	32 mcd 80 mcd	4-SMD No Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 620nm Red, 528nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 2.8V Green, 2.8V Blue 0606 (1616 Metric)
