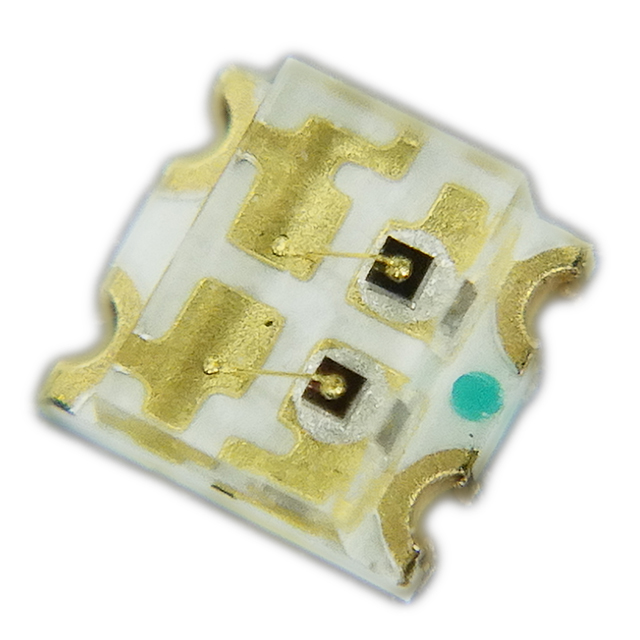

QBLP600-RAG

Active

QT Brightek (QTB)

LED RED/YLW-GRN CLEAR 0606 SMD

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED RED/YLW-GRN CLEAR 0606 SMD

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Color	Lens Style	Viewing Angle	Package / Case	Mounting Type	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Height (Max) [Max]	Lens Size [x]	Lens Size [y]	Color	Configuration	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Current - Test	Height (Max) [Max] [z]	Millicandela Rating	Package / Case
QT Brightek (QTB) QBLP600-RGB5-3164	4-SMD	Diffused	1.5 mm	1.6 mm	1.9 V	2.8 V	2.8 V	35 mcd	34 mcd	230 mcd	White	Rectangle with Flat Top	140 °	0606 1616 Metric	Surface Mount	5 mA	5 mA	5 mA	470 nm	620 nm	528 nm	0.9 mm	1.1 mm	1.5 mm	Blue Green Red	Common Anode
QT Brightek (QTB) QBLP600-RAG	0606	Clear	1.5 mm	1.6 mm							Colorless	Rectangle with Flat Top			Surface Mount								1.1 mm	1.5 mm	Red Yellow-Green	Independent	2.1 V 2.1 V	570 nm 640 nm	20 mA 20 mA	0.8 mm	32 mcd 80 mcd	4-SMD No Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Yellow-Green 640nm Red, 570nm Yellow-Green LED Indication - Discrete 2.1V Red, 2.1V Yellow-Green 4-SMD, No Lead

Technical documentation and resources

No documents available
