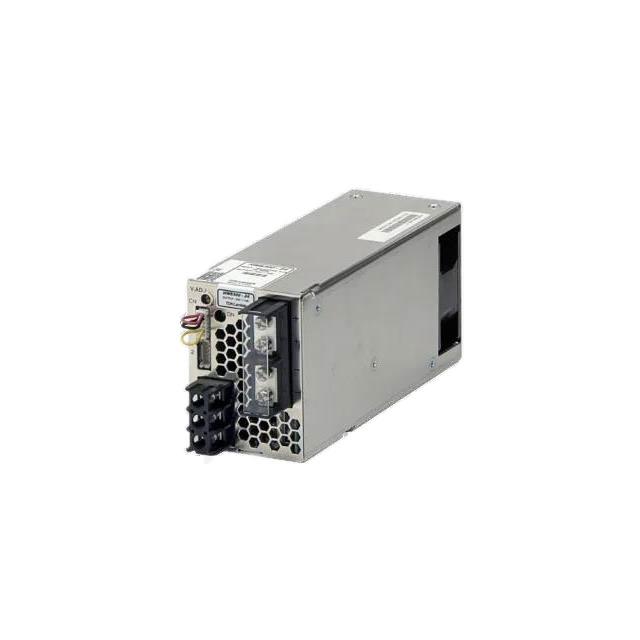

HWS300-24/PV

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 336 W, 24 V, 14 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDeclaration of Conformity EN Safety Data Sheet EN +3

HWS300-24/PV

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 336 W, 24 V, 14 A

Deep-Dive with AI

DocumentsDeclaration of Conformity EN Safety Data Sheet EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HWS300-24/PV

Applications	Industrial, ITE (Commercial)
Approval Agency	UL, CSA, CE
Current - Output 1	14 A
Efficiency	85 %
Features	Remote Sense, Adjustable Output, Remote On/Off, Universal Input, Load Sharing
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	336 W
Size / Dimension [x]	165.1 mm
Size / Dimension [x]	6.5 in
Size / Dimension [y]	2.4 "
Size / Dimension [y]	61 mm
Size / Dimension [z]	82 mm
Size / Dimension [z]	3.23 in
Type	Enclosed
Voltage - Input [Max]	330 V, 265 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

HWS300-1500 Series

Switching Power Supplies 336W 24V 14A

Part	Type	Mounting Type	Approval Agency	Applications	Current - Output 1	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Voltage - Output 1	Features	Efficiency
TDK-LAMBDA HWS300-5	Conformal Coated Enclosed	Chassis Mount	CE	ITE (Commercial)	60 A	3000 V	-10 °C	70 °C	300 W	165.1 mm	6.5 in	2.4 "	61 mm	82 mm	3.23 in	85 VAC	265 VAC	1	5 V	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input
TDK-LAMBDA HWS300-24/HD	Conformal Coated Enclosed	Chassis Mount	CE	ITE (Commercial)	14 A	3000 V	-40 °C	71 °C	300 W	165.1 mm	6.5 in	2.4 "	61 mm	82 mm	3.23 in	85 VAC	265 VAC	1	24 V	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	85 %
TDK-LAMBDA HWS300-48/HD	Conformal Coated Enclosed	Chassis Mount	CE	ITE (Commercial)	7 A	3000 V	-40 °C	71 °C	300 W	165.1 mm	6.5 in	2.4 "	61 mm	82 mm	3.23 in	85 VAC	265 VAC	1	48 V	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	85 %
TDK-LAMBDA HWS300-3/HD	Conformal Coated Enclosed	Chassis Mount	CE	ITE (Commercial)	60 A	3000 V	-40 °C	71 °C	300 W	165.1 mm	6.5 in	2.4 "	61 mm	82 mm	3.23 in	85 VAC	265 VAC	1	3.3 V	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	77 %
TDK-LAMBDA HWS300-48	Conformal Coated Enclosed	Chassis Mount	CE	ITE (Commercial)	7 A	3000 V	-10 °C	70 °C	300 W	165.1 mm	6.5 in	2.4 "	61 mm	82 mm	3.23 in	85 VAC	265 VAC	1	48 V	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	85 %
TDK-LAMBDA HWS300-15/PV	Conformal Coated Enclosed	Chassis Mount	CE	ITE (Commercial)	22 A	3000 V	-10 °C	70 °C	300 W	165.1 mm	6.5 in	2.4 "	61 mm	82 mm	3.23 in	85 VAC	265 VAC	1	15 V	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	85 %
TDK-LAMBDA HWS300-24/PV	Enclosed	Chassis Mount	CE CSA UL	Industrial ITE (Commercial)	14 A	3000 V	-10 °C	70 °C	336 W	165.1 mm	6.5 in	2.4 "	61 mm	82 mm	3.23 in	85 VAC 120 VDC	265 VAC 330 V	1	24 V	Adjustable Output Load Sharing Remote On/Off Remote Sense Universal Input	85 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 458.72
		10	$ 411.72
		25	$ 401.38
Newark	Each	1	$ 458.72
		10	$ 411.72
		25	$ 358.91
		50	$ 358.91
Sager	N/A	1	$ 458.72
		10	$ 411.72
		25	$ 358.91
		50	$ 333.43

Description

General part information

HWS300-1500 Series

Switching Power Supplies 336W 24V 14A

Documents

Technical documentation and resources

HWS300-24/PV

Deep-Dive with AI

HWS300-24/PV

Deep-Dive with AI

Technical Specifications

HWS300-1500 Series

Pricing

Description

HWS300-1500 Series

Documents

Declaration of Conformity EN

Safety Data Sheet EN

Technical Data Sheet EN

User Manual EN

Datasheet

HWS300-1500 Series
