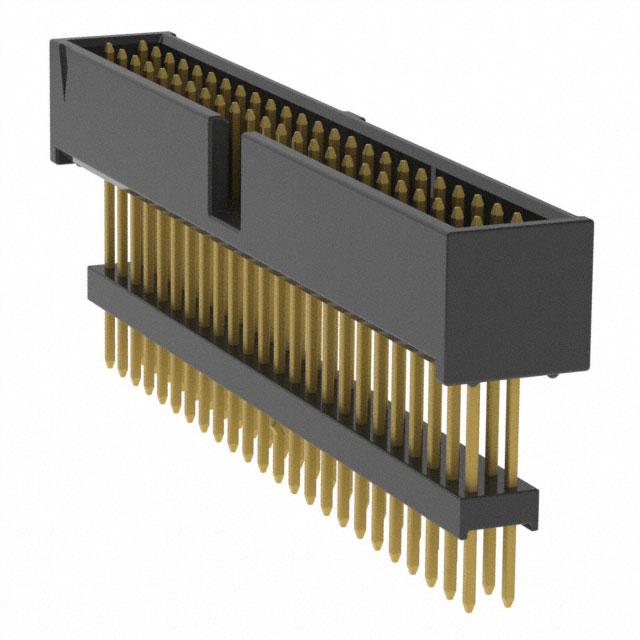

ZSS-124-04-G-D-790-LL

Active

Samtec Inc.

CONN HDR .100" 48POS

Deep-Dive with AI

Search across all available documentation for this part.

ZSS-124-04-G-D-790-LL

Active

Samtec Inc.

CONN HDR .100" 48POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-124-04-G-D-790-LL

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post [x]	3.56 mm
Contact Length - Post [x]	0.14 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.79 in
Insulation Height	20.07 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.93 in
Overall Contact Length	23.62 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Kinked Pin, Solder

ZSS-124 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Mounting Type	Shrouding	Contact Type	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Current Rating (Amps)	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Number of Rows	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Style	Insulation Material	Insulation Height	Insulation Height	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Features	Insulation Color	Contact Length - Post	Contact Length - Post
Samtec Inc. ZSS-124-01-L-D-520
Samtec Inc. ZSS-124-09-L-D-1340
Samtec Inc. ZSS-124-04-G-D-790-LL	10 çin	0.25 çm	UL94 V-0	Push-Pull	-55 °C	125 °C	Square	Through Hole	Shrouded - 4 Wall	Male Pin	6.35 mm	0.25 in	Elevated Header	3 µin	0.076 µm	All	3 A	Gold	0.93 in	23.62 mm	2	Kinked Pin Solder	0.1 in	2.54 mm	Gold	3.56 mm	0.14 in	Board to Board Cable	Polyester Glass Filled	0.79 in	20.07 mm	Phosphor Bronze	2.54 mm	0.1 in	48	Keying Slot	Black
Samtec Inc. ZSS-124-01-S-D-515
Samtec Inc. ZSS-124-07-G-D-740
Samtec Inc. ZSS-124-03-S-S-682	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	-55 °C	125 °C	Square	Through Hole	Shrouded - 4 Wall	Male Pin	6.35 mm	0.25 in	Elevated Header			All	3 A	Gold	0.83 in	21.08 mm	1	Solder	0.1 in	2.54 mm	Tin			Board to Board Cable	Polyester Glass Filled	0.682 in	17.32 mm	Phosphor Bronze			24	Keying Slot	Black	3.76 mm	0.148 in
Samtec Inc. ZSS-124-02-G-D-640
Samtec Inc. ZSS-124-09-L-S-1315	10 çin	0.25 çm	UL94 V-0	Push-Pull	-55 °C	125 °C	Square	Through Hole	Shrouded - 4 Wall	Male Pin	6.35 mm	0.25 in	Elevated Header			All	3 A	Gold			1	Solder	0.1 in	2.54 mm	Tin			Board to Board Cable	Polyester Glass Filled	1.315 in	33.4 mm	Phosphor Bronze			24	Keying Slot	Black	2.92 mm	0.115 in
Samtec Inc. ZSS-124-04-S-D-790-LL	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	-55 °C	125 °C	Square	Through Hole	Shrouded - 4 Wall	Male Pin	6.35 mm	0.25 in	Elevated Header			All	3 A	Gold	0.93 in	23.62 mm	2	Kinked Pin Solder	0.1 in	2.54 mm	Tin	3.56 mm	0.14 in	Board to Board Cable	Polyester Glass Filled	0.79 in	20.07 mm	Phosphor Bronze	2.54 mm	0.1 in	48	Keying Slot	Black
Samtec Inc. ZSS-124-01-L-D-465

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.96

Description

General part information

ZSS-124 Series

Connector Header Through Hole 48 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
