G11M07-P03LPH9-0070
ActiveODU

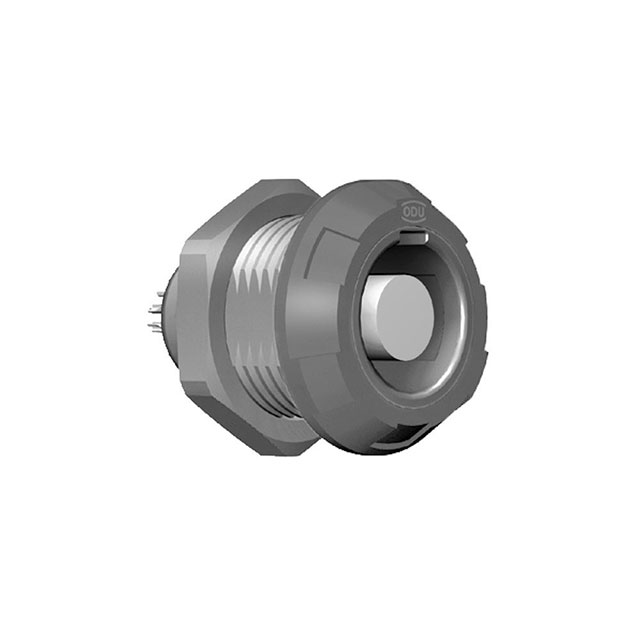

CONN RCPT FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
G11M07-P03LPH9-0070
ActiveODU
CONN RCPT FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G11M07-P03LPH9-0070 |
|---|---|
| Applications | Testing Equipment, Medical, Industrial, Measurement |
| Color | Gray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 14 A |
| Fastening Type | Detent Lock, Push-Pull |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | 0 |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Size - Insert | 1 |
| Shielding | Unshielded |
G11M07-P Series
...
| Part | Voltage Rating | Material Flammability Rating | Primary Material | Color | Fastening Type | Ingress Protection | Shell Size - Insert | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Mounting Feature | Contact Material | Orientation | Connector Type | Shielding | Applications | Contact Finish - Mating | Shell Material | Current Rating (Amps) | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10 V | UL94 V-0 | Plastic | Gray | Detent Lock Push-Pull | IP50 | 1 | 12 | -50 °C | 120 °C | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | Brass | 0 | Receptacle Female Sockets | Unshielded | Industrial Measurement Medical Testing Equipment | Gold | Polysulfone (PSU) | 6 A | |||
Plastic | Gray | Detent Lock Push-Pull | IP50 | 1 | -50 °C | 120 °C | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | Brass | 0 | Receptacle Female Sockets | Unshielded | Industrial Measurement Medical Testing Equipment | Gold | Polysulfone (PSU) | 7.5 A | ||||||
Plastic | Detent Lock Push-Pull | IP50 | 1 | 6 | -50 °C | 120 °C | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | Brass | 0 | Receptacle Female Sockets | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Gold | Polysulfone (PSU) | 4.55 A | ||||||
Plastic | Gray Green | Detent Lock Push-Pull | IP50 | 1 | -50 °C | 120 °C | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | Brass | 0 | Receptacle Female Sockets | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Gold | Polysulfone (PSU) | 7.5 A | ||||||
Plastic | Gray | Detent Lock Push-Pull | IP50 | 1 | 8 | -50 °C | 120 °C | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | Brass | 0 | Receptacle Female Sockets | Unshielded | Industrial Measurement Medical Testing Equipment | Gold | Polysulfone (PSU) | 3.85 A | |||||
38 V | UL94 V-0 | Plastic | Gray | Detent Lock Push-Pull | IP50 | 1 | 2 | -50 °C | 120 °C | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | Brass | 0 | Receptacle Female Sockets | Unshielded | Industrial Measurement Medical Testing Equipment | Gold | Polysulfone (PSU) | 15 A | |||
Plastic | Gray Red | Detent Lock Push-Pull | IP50 | 1 | 7 | -50 °C | 120 °C | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | Brass | 0 | Receptacle Female Sockets | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Gold | Polysulfone (PSU) | 4.55 A | |||||
25 V | UL94 V-0 | Plastic | Gray | Detent Lock Push-Pull | IP50 | 1 | 14 | -50 °C | 120 °C | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | Brass | 0 | Receptacle Female Sockets | Unshielded | Industrial Measurement Medical Testing Equipment | Gold | Polysulfone (PSU) | 4 A | Panel Mount Through Hole | Solder | |
Plastic | Gray | Detent Lock Push-Pull | IP50 | 1 | -50 °C | 120 °C | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | Brass | 0 | Receptacle Female Sockets | Unshielded | Industrial Measurement Medical Testing Equipment | Gold | Polysulfone (PSU) | 14 A | ||||||
Plastic | Gray Red | Detent Lock Push-Pull | IP50 | 1 | 6 | -50 °C | 120 °C | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | Brass | 0 | Receptacle Female Sockets | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Gold | Polysulfone (PSU) | 4.55 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.12 | |
| 10 | $ 9.86 | |||
| 25 | $ 9.48 | |||
| 50 | $ 9.10 | |||
| 100 | $ 8.90 | |||
Description
General part information
G11M07-P Series
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
