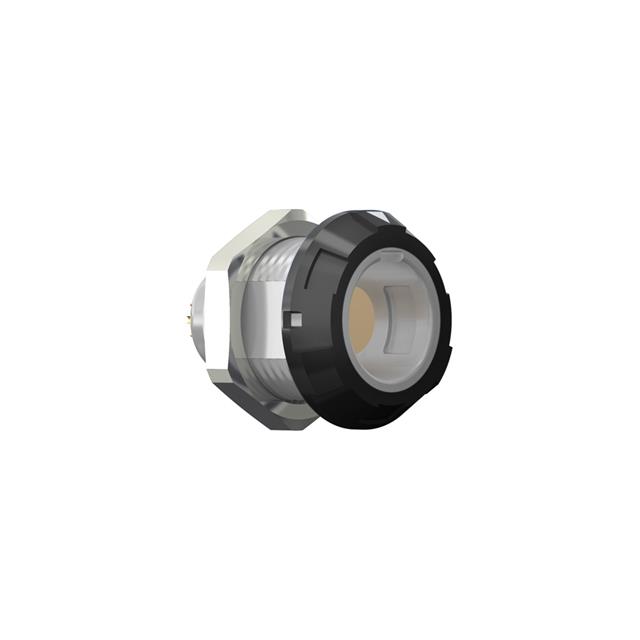

G11M07-P06LFD0-0080

Active

ODU

CONN RCPT FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G11M07-P06LFD0-0080

Active

ODU

CONN RCPT FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G11M07-P06LFD0-0080

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4.55 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	6
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	0
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded

G11M07-P Series

...

Part	Voltage Rating	Material Flammability Rating	Primary Material	Color	Fastening Type	Ingress Protection	Shell Size - Insert	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Mounting Feature	Contact Material	Connector Type	Shielding	Applications	Contact Finish - Mating	Shell Material	Current Rating (Amps)	Mounting Type	Termination
ODU G11M07-P12LCD9-0070	10 V	UL94 V-0	Plastic	Gray	Detent Lock Push-Pull	IP50	1	12	-50 °C	120 °C	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	Brass	Receptacle Female Sockets	Unshielded	Industrial Measurement Medical Testing Equipment	Gold	Polysulfone (PSU)	6 A
ODU G11M07-P05LJG0-0070			Plastic	Gray	Detent Lock Push-Pull	IP50	1		-50 °C	120 °C	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	Brass	Receptacle Female Sockets	Unshielded	Industrial Measurement Medical Testing Equipment	Gold	Polysulfone (PSU)	7.5 A
ODU G11M07-P06LFD0-0080			Plastic		Detent Lock Push-Pull	IP50	1	6	-50 °C	120 °C	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	Brass	Receptacle Female Sockets	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Gold	Polysulfone (PSU)	4.55 A
ODU G11M07-P05LJG0-0050			Plastic	Gray Green	Detent Lock Push-Pull	IP50	1		-50 °C	120 °C	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	Brass	Receptacle Female Sockets	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Gold	Polysulfone (PSU)	7.5 A
ODU G11M07-P08LFD0-0070			Plastic	Gray	Detent Lock Push-Pull	IP50	1	8	-50 °C	120 °C	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	Brass	Receptacle Female Sockets	Unshielded	Industrial Measurement Medical Testing Equipment	Gold	Polysulfone (PSU)	3.85 A
ODU G11M07-P02LPN0-0070	38 V	UL94 V-0	Plastic	Gray	Detent Lock Push-Pull	IP50	1	2	-50 °C	120 °C	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	Brass	Receptacle Female Sockets	Unshielded	Industrial Measurement Medical Testing Equipment	Gold	Polysulfone (PSU)	15 A
ODU G11M07-P07LFD0-0020			Plastic	Gray Red	Detent Lock Push-Pull	IP50	1	7	-50 °C	120 °C	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	Brass	Receptacle Female Sockets	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Gold	Polysulfone (PSU)	4.55 A
ODU G11M07-P14QC00-0070	25 V	UL94 V-0	Plastic	Gray	Detent Lock Push-Pull	IP50	1	14	-50 °C	120 °C	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	Brass	Receptacle Female Sockets	Unshielded	Industrial Measurement Medical Testing Equipment	Gold	Polysulfone (PSU)	4 A	Panel Mount Through Hole	Solder
ODU G11M07-P03LPH9-0070			Plastic	Gray	Detent Lock Push-Pull	IP50	1		-50 °C	120 °C	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	Brass	Receptacle Female Sockets	Unshielded	Industrial Measurement Medical Testing Equipment	Gold	Polysulfone (PSU)	14 A
ODU G11M07-P06LFG0-0020			Plastic	Gray Red	Detent Lock Push-Pull	IP50	1	6	-50 °C	120 °C	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut	Brass	Receptacle Female Sockets	Unshielded	Industrial Medical Military Testing Equipment & Measurement	Gold	Polysulfone (PSU)	4.55 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.64
		10	$ 22.87
		25	$ 20.72
		50	$ 19.27
		100	$ 17.95
		250	$ 16.40
		500	$ 15.36

Description

General part information

G11M07-P Series

6 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources
