C09131G0051002U
ActiveAmphenol Tuchel Industrial

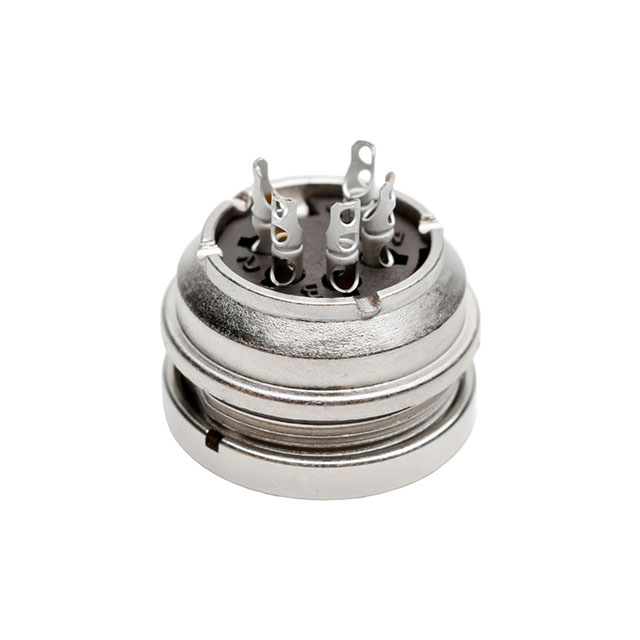

CONN RCPT FMALE 5P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C09131G0051002U
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 5P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C09131G0051002U |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 7 A |
| Ingress Protection | IP69K, IP65, IP67 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-5 |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.89 | |
| 10 | $ 10.54 | |||
| 25 | $ 10.13 | |||
| 50 | $ 9.73 | |||
| 100 | $ 9.19 | |||
| 300 | $ 8.38 | |||
| 500 | $ 7.84 | |||
| 1000 | $ 7.19 | |||
Description
General part information
C09131G Series
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
