C09131G0142002U
ActiveAmphenol Tuchel Industrial

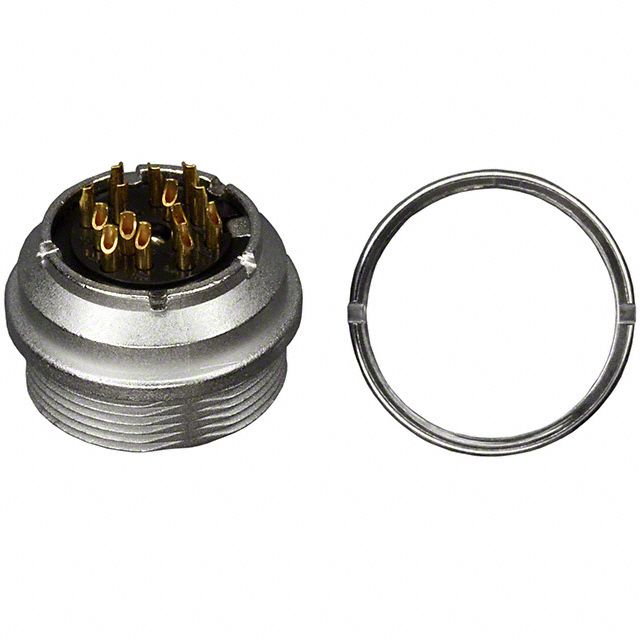

CONN RCPT FMALE 14P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C09131G0142002U
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 14P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C09131G0142002U |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 3 A |
| Ingress Protection | IP69K, IP65, IP67 |
| Number of Positions | 14 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-14 |
| Shielding | Shielded |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.53 | |
| 10 | $ 19.73 | |||
| 25 | $ 18.88 | |||
| 50 | $ 18.27 | |||
| 105 | $ 17.66 | |||
| 315 | $ 16.69 | |||
| 525 | $ 16.20 | |||
Description
General part information
C09131G Series
14 Position Circular Connector Receptacle, Female Sockets Solder Cup
