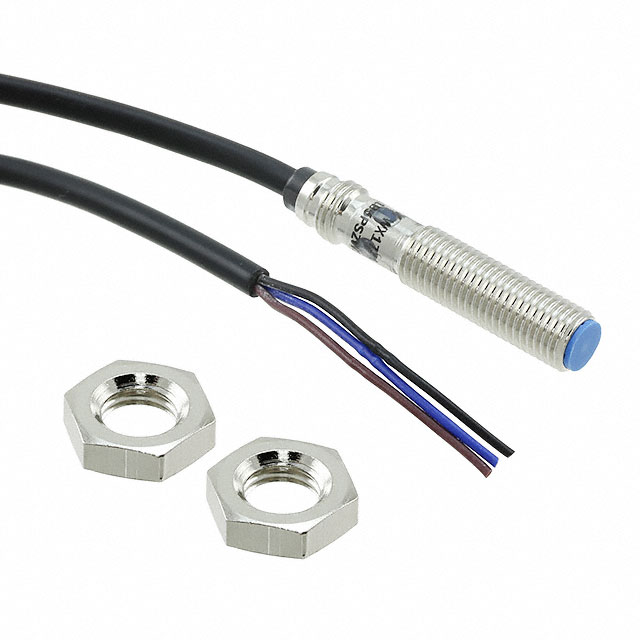

1040839

Active

SICK, Inc.

SENSOR PROX INDUCT 1.5MM CYLIND

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1040839

Active

SICK, Inc.

SENSOR PROX INDUCT 1.5MM CYLIND

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1040839

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M8
Response Frequency	4 kHz
Sensing Distance	1.5 mm
Sensing Distance	0.059 "
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

IME08 Series

Part	Material - Body	Output Type	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Indicator [custom]	Sensor Type	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Response Frequency	Shielding
SICK, Inc. 1040843	Plastic	PNP-NC 3-Wire	1.5 mm	0.059 "	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1047424	Plastic	PNP-NO 3-Wire	2 mm	0.079 in	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1040888	Plastic	PNP-NO 3-Wire	4 mm	0.157 in	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. IME08-04NNSZW2K	Plastic	NPN-NO 3-Wire	4 mm	0.157 in	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1040839	Nickel-Plated Brass	PNP-NO 3-Wire	1.5 mm	0.059 "	-25 °C	75 ░C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Unshielded
SICK, Inc. 1040860	Plastic	PNP-NC 3-Wire	2.5 mm	0.098 in	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1040848	Plastic	NPN-NO 3-Wire	1.5 mm	0.059 "	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1040859	Plastic	PNP-NC 3-Wire	2.5 mm	0.098 in	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1040851	Plastic	NPN-NC 3-Wire	1.5 mm	0.059 "	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1040855	Plastic	PNP-NO 3-Wire	2.5 mm	0.098 in	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 71.82
		5	$ 60.58
		10	$ 56.30
		25	$ 51.11
		50	$ 47.50
		100	$ 44.15

Description

General part information

IME08 Series

SENSOR PROX INDUCT 1.5MM CYLIND

Documents

Technical documentation and resources
