1040888

Active

SICK, Inc.

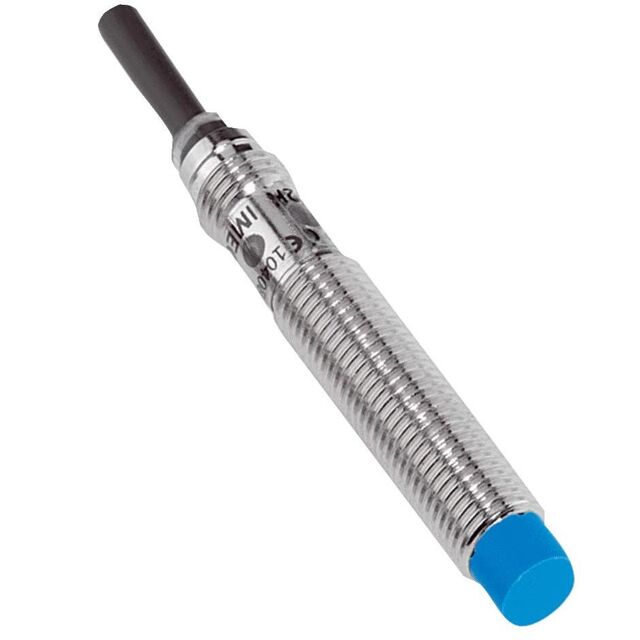

SENSOR PROX INDUC 4MM CYL 2M CBL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1040888

Active

SICK, Inc.

SENSOR PROX INDUC 4MM CYL 2M CBL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1040888

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Plastic
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M8
Response Frequency	4 kHz
Sensing Distance	4 mm
Sensing Distance	0.157 in
Sensor Type	Inductive
Shielding	Shielded
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

IME08 Series

Part	Material - Body	Output Type	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Indicator [custom]	Sensor Type	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Response Frequency	Shielding
SICK, Inc. 1040843	Plastic	PNP-NC 3-Wire	1.5 mm	0.059 "	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1047424	Plastic	PNP-NO 3-Wire	2 mm	0.079 in	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1040888	Plastic	PNP-NO 3-Wire	4 mm	0.157 in	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. IME08-04NNSZW2K	Plastic	NPN-NO 3-Wire	4 mm	0.157 in	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1040839	Nickel-Plated Brass	PNP-NO 3-Wire	1.5 mm	0.059 "	-25 °C	75 ░C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Unshielded
SICK, Inc. 1040860	Plastic	PNP-NC 3-Wire	2.5 mm	0.098 in	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1040848	Plastic	NPN-NO 3-Wire	1.5 mm	0.059 "	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1040859	Plastic	PNP-NC 3-Wire	2.5 mm	0.098 in	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1040851	Plastic	NPN-NC 3-Wire	1.5 mm	0.059 "	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded
SICK, Inc. 1040855	Plastic	PNP-NO 3-Wire	2.5 mm	0.098 in	-25 °C	75 °C	IP67	LED	Inductive	Cable Leads	30 VDC	10 VDC	Cylinder Threaded - M8	4 kHz	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.03
		5	$ 51.73
		10	$ 50.12
		25	$ 48.20
		50	$ 46.89
		100	$ 45.68

Description

General part information

IME08 Series

SENSOR PROX INDUC 4MM CYL 2M CBL
