11_N-50-3-29/133_NE
ActiveHuber+Suhner, Inc.

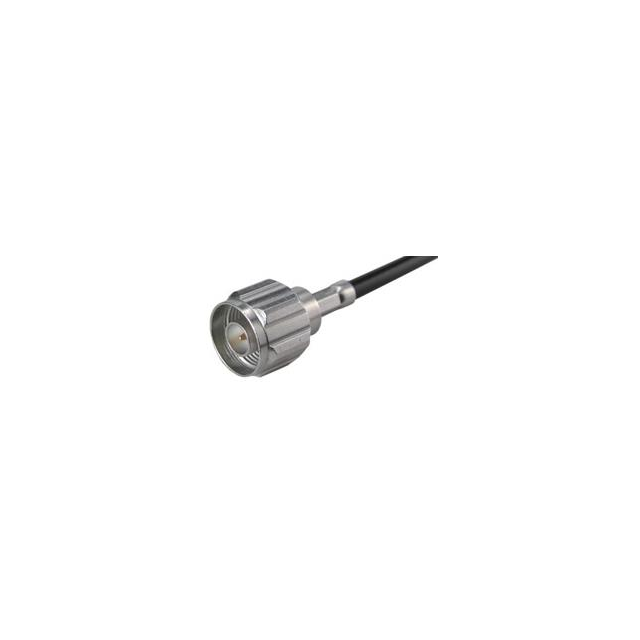

CONN TYPE N 0HZ TO 11GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD OVER NICKEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
11_N-50-3-29/133_NE
ActiveHuber+Suhner, Inc.
CONN TYPE N 0HZ TO 11GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD OVER NICKEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 11_N-50-3-29/133_NE |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | 223, RG-142 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 1000 VDC |
11_N-50 Series
| Part | Connector Style | Connector Type | Shield Termination | Voltage Rating | Body Finish | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Max [Max] | Center Contact Material | Contact Termination | Impedance | Dielectric Material | Number of Ports | Housing Color | Center Contact Plating | Mating Cycles | Mounting Type | Cable Group | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Huber+Suhner, Inc. | N Type | Male Pin Plug | Clamp | 1000 VDC | White Bronze | Brass | 85 °C | -40 °C | 11 GHz | Bronze | Crimp | 50 Ohms | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | Silver | Silver | 500 | Free Hanging (In-Line) | ||
Huber+Suhner, Inc. | N Type | Male Pin Plug | Crimp | 1000 VDC | White Bronze | Brass | 165 °C | -65 ░C | 11 GHz | Brass | Crimp | 50 Ohms | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | Silver | Gold | 500 | Free Hanging (In-Line) | RG-214 | |
Huber+Suhner, Inc. | N Type | Male Pin Plug | Crimp | 1000 VDC | White Bronze | Brass | 165 °C | -65 ░C | 11 GHz | Brass | Crimp | 50 Ohms | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | Silver | Gold | 500 | Free Hanging (In-Line) | 223 RG-142 | |
Huber+Suhner, Inc. | N Type | Male Pin Plug | Clamp | 1000 VDC | White Bronze | Brass | 165 °C | -65 ░C | 11 GHz | Bronze | Crimp | 50 Ohms | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | Silver | Gold | 500 | Free Hanging (In-Line) | ||
Huber+Suhner, Inc. | N Type | Male Pin Plug | Crimp | Silver | Brass | 165 °C | -65 ░C | 3 GHz | Bronze | Crimp | 50 Ohms | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | Silver | Gold | 500 | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | ||
Huber+Suhner, Inc. | N Type | Male Pin Plug | Crimp | 1000 VDC | White Bronze | Brass | 165 °C | -65 ░C | 11 GHz | Brass | Crimp | 50 Ohms | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | Silver | Gold | 500 | Free Hanging (In-Line) | ||
Huber+Suhner, Inc. | N Type | Male Pin Plug | Solder | 1000 VDC | White Bronze | Brass | 70 °C | -55 °C | 18 GHz | Beryllium Copper | Crimp | 50 Ohms | 1 | Silver | Gold | 500 | Free Hanging (In-Line) | RG-141 | ||
Huber+Suhner, Inc. | N Type | Male Pin Plug | Clamp | 1000 VDC | Nickel | Brass | 165 °C | -60 °C | 18 GHz | Beryllium Copper | Crimp | 50 Ohms | Polytetrafluoroethylene (PTFE) | 1 | Silver | Gold | 500 | Free Hanging (In-Line) | RG-6C | |
Huber+Suhner, Inc. | N Type | Male Pin Plug | Crimp | 1000 VDC | White Bronze | Brass | 165 °C | -65 ░C | 11 GHz | Brass | Crimp | 50 Ohms | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | Silver | Gold | 500 | Free Hanging (In-Line) | ||
Huber+Suhner, Inc. | N Type | Male Pin Plug | Clamp | 1000 VDC | White Bronze | Brass | 165 °C | -65 ░C | 18 GHz | Brass | Solder | 50 Ohms | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 1 | Silver | Gold | 500 | Free Hanging (In-Line) | 223 RG-142 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.13 | |
| 10 | $ 12.25 | |||
| 25 | $ 11.85 | |||
Description
General part information
11_N-50 Series
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
