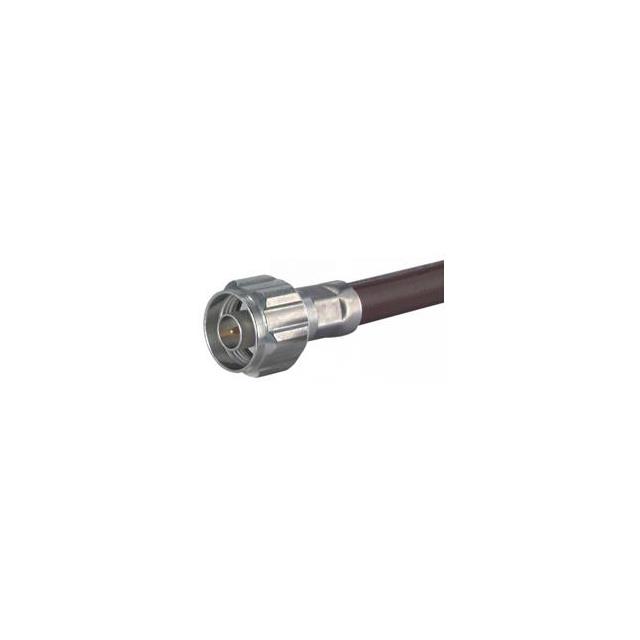

11_N-50-7-44/133_NH

Active

Huber+Suhner, Inc.

11_N-50-7-44/133_NH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11_N-50-7-44/133_NH

Active

Huber+Suhner, Inc.

11_N-50-7-44/133_NH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11_N-50-7-44/133_NH

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-214
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

11_N-50 Series

Part	Connector Style	Connector Type	Shield Termination	Voltage Rating	Body Finish	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Center Contact Material	Contact Termination	Impedance	Dielectric Material	Number of Ports	Housing Color	Center Contact Plating	Mating Cycles	Mounting Type	Cable Group	Ingress Protection
Huber+Suhner, Inc. 11_N-50-9-9/033_-E	N Type	Male Pin Plug	Clamp	1000 VDC	White Bronze	Brass	85 °C	-40 °C	11 GHz	Bronze	Crimp	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Silver	Silver	500	Free Hanging (In-Line)
Huber+Suhner, Inc. 11_N-50-7-44/133_NH	N Type	Male Pin Plug	Crimp	1000 VDC	White Bronze	Brass	165 °C	-65 ░C	11 GHz	Brass	Crimp	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Silver	Gold	500	Free Hanging (In-Line)	RG-214
Huber+Suhner, Inc. 11_N-50-3-29/133_NE	N Type	Male Pin Plug	Crimp	1000 VDC	White Bronze	Brass	165 °C	-65 ░C	11 GHz	Brass	Crimp	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Silver	Gold	500	Free Hanging (In-Line)	223 RG-142
Huber+Suhner, Inc. 11_N-50-4-9/133_NE	N Type	Male Pin Plug	Clamp	1000 VDC	White Bronze	Brass	165 °C	-65 ░C	11 GHz	Bronze	Crimp	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Silver	Gold	500	Free Hanging (In-Line)
Huber+Suhner, Inc. 11_N-50-10-5/103_UV	N Type	Male Pin Plug	Crimp		Silver	Brass	165 °C	-65 ░C	3 GHz	Bronze	Crimp	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Silver	Gold	500	Free Hanging (In-Line)		IP67 - Dust Tight Waterproof
Huber+Suhner, Inc. 11_N-50-4-63/133_NE	N Type	Male Pin Plug	Crimp	1000 VDC	White Bronze	Brass	165 °C	-65 ░C	11 GHz	Brass	Crimp	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Silver	Gold	500	Free Hanging (In-Line)
Huber+Suhner, Inc. 11_N-50-3-51/133_NE	N Type	Male Pin Plug	Solder	1000 VDC	White Bronze	Brass	70 °C	-55 °C	18 GHz	Beryllium Copper	Crimp	50 Ohms		1	Silver	Gold	500	Free Hanging (In-Line)	RG-141
Huber+Suhner, Inc. 11_N-50-6-19/12-_NE	N Type	Male Pin Plug	Clamp	1000 VDC	Nickel	Brass	165 °C	-60 °C	18 GHz	Beryllium Copper	Crimp	50 Ohms	Polytetrafluoroethylene (PTFE)	1	Silver	Gold	500	Free Hanging (In-Line)	RG-6C
Huber+Suhner, Inc. 11_N-50-7-33/133_NE	N Type	Male Pin Plug	Crimp	1000 VDC	White Bronze	Brass	165 °C	-65 ░C	11 GHz	Brass	Crimp	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Silver	Gold	500	Free Hanging (In-Line)
Huber+Suhner, Inc. 11_N-50-3-54/133_NE	N Type	Male Pin Plug	Clamp	1000 VDC	White Bronze	Brass	165 °C	-65 ░C	18 GHz	Brass	Solder	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Silver	Gold	500	Free Hanging (In-Line)	223 RG-142

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.33

Description

General part information

11_N-50 Series

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
