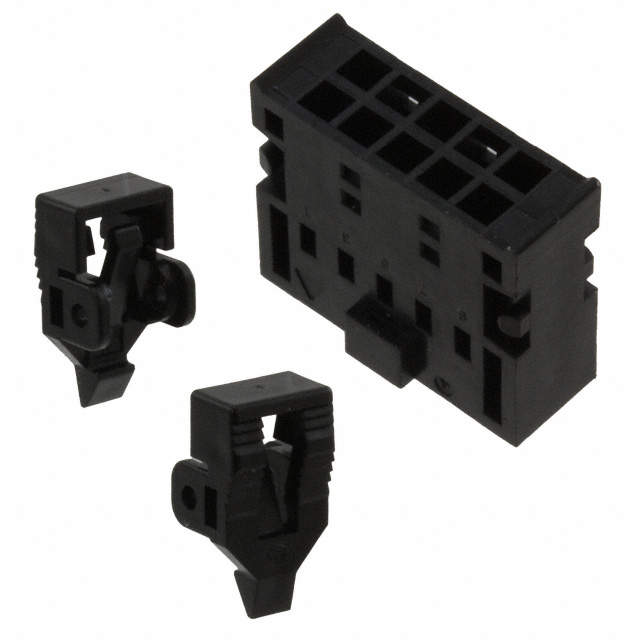

XG5N-101-U

Active

Omron Electronics Inc-EMC Div

CONN RCPT HSG 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

XG5N-101-U

Active

Omron Electronics Inc-EMC Div

CONN RCPT HSG 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XG5N-101-U

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock/Eject Hooks
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

XG5N Series

Part	Mounting Type	Note	Contact Type	Number of Positions	Color	Connector Type	Contact Termination	Row Spacing [x]	Row Spacing	Insulation Material	Pitch [x]	Pitch [x]	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type
Omron Electronics Inc-EMC Div XG5N-641	Free Hanging (In-Line)	Contacts Not Included	Female Socket	64	Black	Receptacle	Crimp	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	2	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-642	Free Hanging (In-Line)	Contacts Not Included	Female Socket	64	Black	Receptacle	Crimp	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	2	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-601	Free Hanging (In-Line)	Contacts Not Included	Female Socket	60	Black	Receptacle	Crimp	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	2	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-101-U	Free Hanging (In-Line)	Contacts Not Included	Female Socket	10	Black	Receptacle	Crimp	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	2	105 ░C	-55 °C	Latch Lock/Eject Hooks
Omron Electronics Inc-EMC Div XG5N-241	Free Hanging (In-Line)	Contacts Not Included	Female Socket	24	Black	Receptacle	Crimp	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	2	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-341	Free Hanging (In-Line)	Contacts Not Included	Female Socket	34	Black	Receptacle	Crimp	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	2	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG5N-601-U	Free Hanging (In-Line)	Contacts Not Included	Female Socket	60	Black	Receptacle	Crimp	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	2	105 ░C	-55 °C	Latch Lock/Eject Hooks

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.15
		10	$ 2.86
		25	$ 2.71
		50	$ 2.65
		100	$ 2.52
		300	$ 2.21
		500	$ 2.14
		1000	$ 1.83
		2500	$ 1.70
