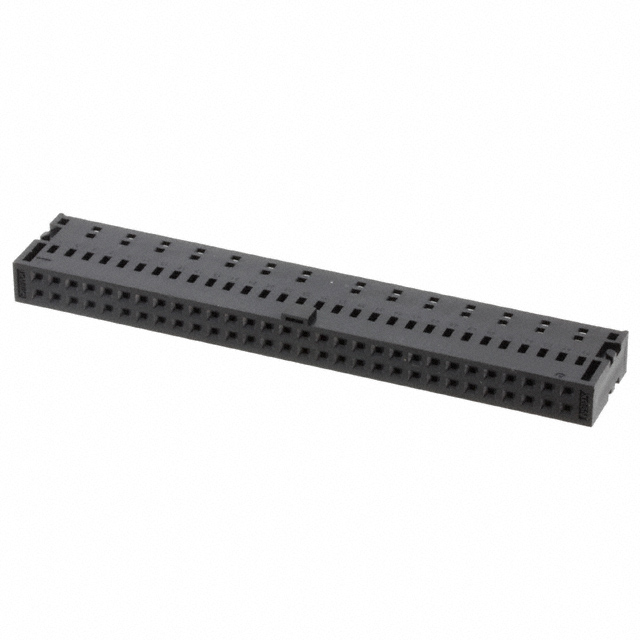

XG5N-601
ActiveOmron Electronics Inc-EMC Div
CONN RCPT HSG 60POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
XG5N-601
ActiveOmron Electronics Inc-EMC Div
CONN RCPT HSG 60POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XG5N-601 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
XG5N Series
| Part | Mounting Type | Note | Contact Type | Number of Positions | Color | Connector Type | Contact Termination | Row Spacing [x] | Row Spacing | Insulation Material | Pitch [x] | Pitch [x] | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 64 | Black | Receptacle | Crimp | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 2.54 mm | 0.1 in | 2 | 105 ░C | -55 °C | |
Omron Electronics Inc-EMC Div | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 64 | Black | Receptacle | Crimp | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 2.54 mm | 0.1 in | 2 | 105 ░C | -55 °C | |
Omron Electronics Inc-EMC Div | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 60 | Black | Receptacle | Crimp | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 2.54 mm | 0.1 in | 2 | 105 ░C | -55 °C | |
Omron Electronics Inc-EMC Div | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 10 | Black | Receptacle | Crimp | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 2.54 mm | 0.1 in | 2 | 105 ░C | -55 °C | Latch Lock/Eject Hooks |
Omron Electronics Inc-EMC Div | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 24 | Black | Receptacle | Crimp | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 2.54 mm | 0.1 in | 2 | 105 ░C | -55 °C | |
Omron Electronics Inc-EMC Div | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 34 | Black | Receptacle | Crimp | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 2.54 mm | 0.1 in | 2 | 105 ░C | -55 °C | |
Omron Electronics Inc-EMC Div | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 60 | Black | Receptacle | Crimp | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 2.54 mm | 0.1 in | 2 | 105 ░C | -55 °C | Latch Lock/Eject Hooks |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.01 | |
| 10 | $ 2.73 | |||
| 25 | $ 2.59 | |||
| 50 | $ 2.53 | |||
| 100 | $ 2.41 | |||
| 300 | $ 2.11 | |||
| 500 | $ 2.05 | |||
| 1000 | $ 1.75 | |||
| 2500 | $ 1.63 | |||
Description
General part information
XG5N Series
60 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
