ES1GFS

Active

Taiwan Semiconductor Corporation

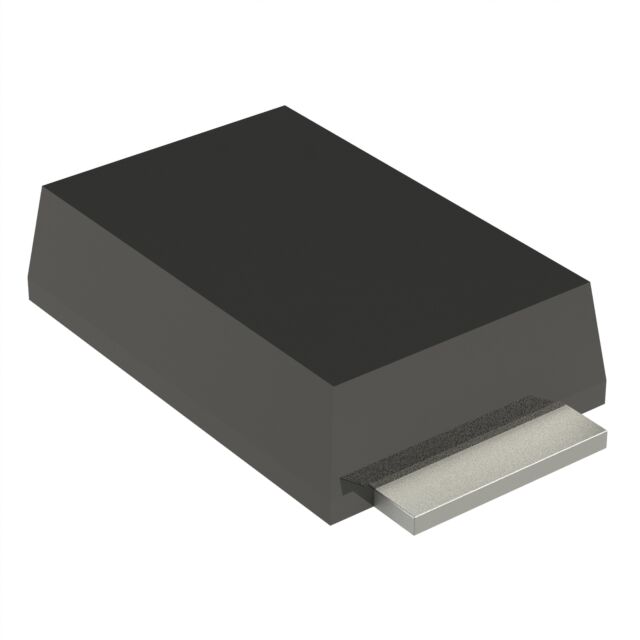

DIODE STANDARD 400V 1A SOD128

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ES1GFS

Active

Taiwan Semiconductor Corporation

DIODE STANDARD 400V 1A SOD128

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ES1GFS

Capacitance @ Vr, F	16 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-128
Reverse Recovery Time (trr)	35 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOD-128
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

ES1G Series

Part	Package / Case	Capacitance @ Vr, F	Technology	Mounting Type	Speed	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Supplier Device Package	Qualification	Grade
Taiwan Semiconductor Corporation ES1GL RVG	DO-219AB	8 pF	Standard	Surface Mount	200 mA 500 ns	1.3 V	150 °C	-55 °C	5 µA	400 V	35 ns	1 A	Sub SMA
Taiwan Semiconductor Corporation ES1GFS	SOD-128	16 pF	Standard	Surface Mount	200 mA 500 ns	1.3 V	150 °C	-55 °C	1 µA	400 V	35 ns	1 A	SOD-128
Taiwan Semiconductor Corporation ES1G	DO-214AC SMA	18 pF	Standard	Surface Mount	200 mA 500 ns	1.3 V	150 °C	-55 °C	5 µA	400 V	35 ns	1 A	DO-214AC (SMA)
Taiwan Semiconductor Corporation ES1GLHR3G	DO-219AB	8 pF	Standard	Surface Mount	200 mA 500 ns	1.3 V	150 °C	-55 °C	5 µA	400 V	35 ns	1 A	Sub SMA	AEC-Q101	Automotive
Taiwan Semiconductor Corporation ES1GL M2G	DO-219AB		Standard	Surface Mount	200 mA 500 ns	1.3 V	150 °C	-55 °C	5 µA	400 V	35 ns	1 A	Sub SMA
Taiwan Semiconductor Corporation ES1GLHMQG	DO-219AB	8 pF	Standard	Surface Mount	200 mA 500 ns	1.3 V	150 °C	-55 °C	5 µA	400 V	35 ns	1 A	Sub SMA	AEC-Q101	Automotive
Taiwan Semiconductor Corporation ES1GL RUG	DO-219AB		Standard	Surface Mount	200 mA 500 ns	1.3 V	150 °C	-55 °C	5 µA	400 V	35 ns	1 A	Sub SMA
Taiwan Semiconductor Corporation ES1GLHRFG	DO-219AB	8 pF	Standard	Surface Mount	200 mA 500 ns	1.3 V	150 °C	-55 °C	5 µA	400 V	35 ns	1 A	Sub SMA	AEC-Q101	Automotive
Taiwan Semiconductor Corporation ES1GLWHRVG	SOD-123W	20 pF	Standard	Surface Mount	200 mA 500 ns	1.3 V	175 ░C	-55 C	5 µA	400 V	35 ns	1 A	SOD-123W
Taiwan Semiconductor Corporation ES1GL	DO-219AB	8 pF	Standard	Surface Mount	200 mA 500 ns	1.3 V	150 °C	-55 °C	5 µA	400 V	35 ns	1 A	Sub SMA
