2410ML-04W-B70-E00

Obsolete

NMB TECHNOLOGIES

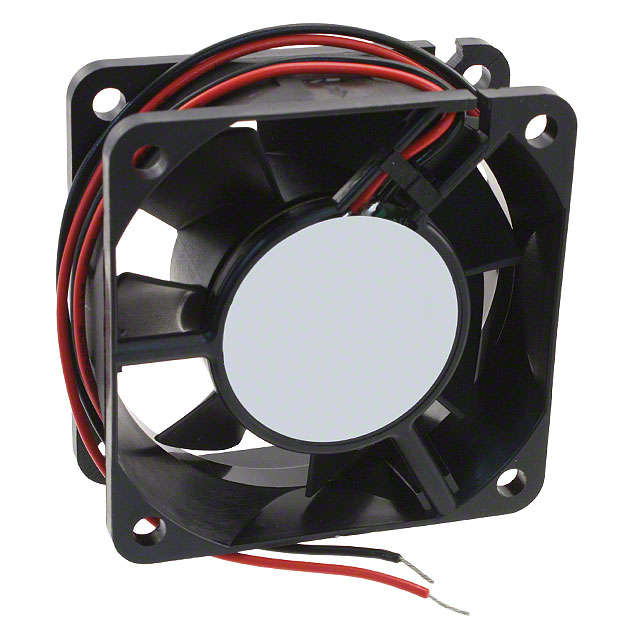

FAN AXIAL 60X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans & Blowers Catalog Datasheet +1

2410ML-04W-B70-E00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 60X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans & Blowers Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2410ML-04W-B70-E00

Air Flow	0.927 mł/min
Air Flow	33.1 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.44 A
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	45 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	5.48 W
RPM	6800 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.502 in H2O
Static Pressure	125 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Width [y]	25 mm

2410ML Series

Part	Material - Frame	Static Pressure	Static Pressure	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Noise	Size / Dimension [x]	Size / Dimension [y]	RPM	Material - Blade	Power (Watts)	Features	Current Rating (Amps)	Width [y]	Termination	Air Flow	Air Flow	Fan Type	Bearing Type
NMB TECHNOLOGIES 2410ML-05W-B59-B50	Plastic	0.25 in H2O	62.3 Pa	24 VDC	10 VDC	27.6 VDC	-10 °C	50 °C	50 °C	-10 °C	CE CSA UL VDE	35 dB	60 mm	60 mm	4900 RPM	Plastic	2.4 W	Auto Restart Speed Sensor (Tach)	100 mA	25 mm	3 Wire Leads	23.3 CFM	0.652 mł/min	Tubeaxial	Ball
NMB TECHNOLOGIES 2410ML-05W-B69-B50	Plastic	0.293 in H2O	73 Pa	24 VDC	10 VDC	27.6 VDC	-10 °C	50 °C	50 °C	-10 °C	CE CSA UL VDE	36 dB	60 mm	60 mm	5300 RPM	Plastic	3.12 W	Auto Restart Speed Sensor (Tach)		25 mm	3 Wire Leads	25 CFM	0.7 mł/min	Tubeaxial	Ball
NMB TECHNOLOGIES 2410ML-04W-B59-B00	Plastic	0.25 in H2O	62.3 Pa	12 VDC	6 VDC	13.8 VDC	-10 °C	50 °C	50 °C	-10 °C	CE CSA UL VDE	35 dB	60 mm	60 mm	4900 RPM	Plastic	2.4 W	Auto Restart Locked Rotor Sensor	0.2 A	25 mm	3 Wire Leads	23.3 CFM	0.652 mł/min	Tubeaxial	Ball
NMB TECHNOLOGIES 2410ML-04W-B69-E00	Plastic	0.293 in H2O	73 Pa	12 VDC	6 VDC	13.8 VDC	-10 °C	50 °C	50 °C	-10 °C	CE CSA UL VDE	36 dB	60 mm	60 mm	5300 RPM	Plastic	3.6 W	Auto Restart Locked Rotor Sensor		25 mm	3 Wire Leads	25 CFM	0.7 mł/min	Tubeaxial	Ball
NMB TECHNOLOGIES 2410ML-05W-B49-B50	Plastic	0.208 in H2O	51.8 Pa	24 VDC	10 VDC	27.6 VDC	-10 °C	70 °C	70 °C	-10 °C	CE CSA UL VDE	33.5 dB(A)	60 mm	60 mm	4550 RPM	Plastic	2.16 W	Auto Restart Speed Sensor (Tach)	0.09 A	25 mm	3 Wire Leads	21.5 CFM	0.602 m³/min	Tubeaxial	Ball
NMB TECHNOLOGIES 2410ML-04W-B59-E50	Plastic	0.25 in H2O	62.3 Pa	12 VDC	6 VDC	13.8 VDC	-10 °C	50 °C	50 °C	-10 °C	CE CSA UL VDE	35 dB	60 mm	60 mm	4900 RPM	Plastic	2.4 W	Auto Restart Speed Sensor (Tach)	0.2 A	25 mm	3 Wire Leads	23.3 CFM	0.652 mł/min	Tubeaxial	Ball
NMB TECHNOLOGIES 2410ML-05W-B30-B00	Plastic			24 VDC	10 VDC	27.6 VDC	-10 °C	70 °C	70 °C	-10 °C	CE CSA UL VDE	31 dB(A)	60 mm	60 mm	4000 RPM	Plastic	1.44 W	Auto Restart	60 mA	25 mm	2 Wire Leads	19 CFM	0.532 m³/min	Tubeaxial	Ball
NMB TECHNOLOGIES 2410ML-04W-B80-B00	Plastic	0.572 in H2O	142.5 Pa	12 VDC			-10 °C	60 °C	60 °C	-10 °C	CE CSA UL VDE	46 dB(A)	60 mm	60 mm	7800 RPM	Plastic	6.2 W	Auto Restart	0.52 A	25 mm	2 Wire Leads	37.1 CFM	1.04 mł/min	Tubeaxial	Ball
NMB TECHNOLOGIES 2410ML-04W-B49-E50	Plastic	0.208 in H2O	51.8 Pa	12 VDC	6 VDC	13.8 VDC	-10 °C	70 °C	70 °C	-10 °C	CE CSA UL VDE	33.5 dB(A)	60 mm	60 mm	4550 RPM	Plastic		Auto Restart Speed Sensor (Tach)	0.17 A	25 mm	3 Wire Leads	21.5 CFM	0.602 m³/min	Tubeaxial	Ball
NMB TECHNOLOGIES 2410ML-04W-B70-E00	Plastic	0.502 in H2O	125 Pa	12 VDC	6 VDC	13.8 VDC	-10 °C	70 °C	70 °C	-10 °C	CE CSA UL VDE	45 dB(A)	60 mm	60 mm	6800 RPM	Plastic	5.48 W		0.44 A	25 mm	2 Wire Leads	33.1 CFM	0.927 mł/min	Tubeaxial	Ball

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2410ML Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 33.1 CFM (0.927m³/min) 2 Wire Leads
