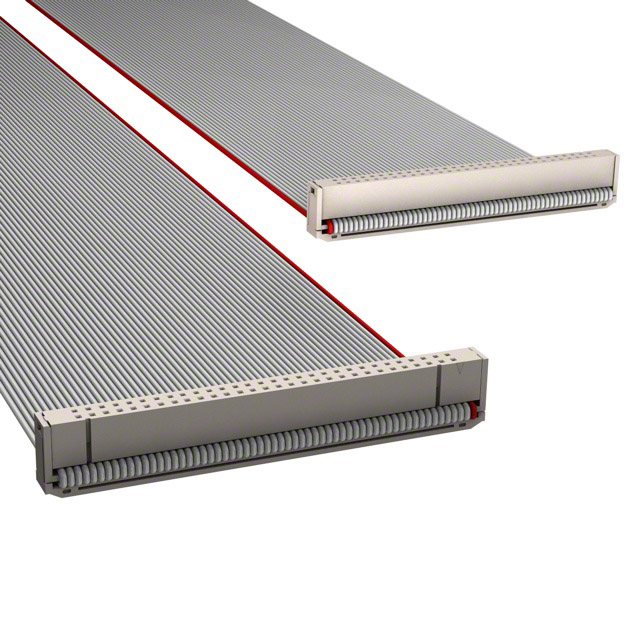

M3BBA-6006J

Active

3M (TC)

IDC CABLE - MSR60A/MC60G/MSR60A

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet 891 Series Datasheet +1

M3BBA-6006J

Active

3M (TC)

IDC CABLE - MSR60A/MC60G/MSR60A

Deep-Dive with AI

Documents3365 Series Datasheet 891 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3BBA-6006J

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	60
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3BBA Series

Part	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch - Cable	Pitch - Cable	Number of Rows	Shielding	Cable Termination	Length	Length	Length	Number of Positions	Connector Type	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length
3M (TC) M3BBA-6006R	Gold	Multiple Ribbon	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	152.4 mm	6 "	0.5 '	60	Socket to Socket	0.1 in	2.54 mm
3M (TC) M3BBA-3406J	Gold		0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	152.4 mm	6 "	0.5 '	34	Socket to Socket	0.1 in	2.54 mm
3M (TC) M3BBA-1036R	Gold	Multiple Ribbon	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC				10	Socket to Socket	0.1 in	2.54 mm	3 ft	914.4 mm
3M (TC) M3BBA-4006R	Gold	Multiple Ribbon	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	152.4 mm	6 "	0.5 '	40	Socket to Socket	0.1 in	2.54 mm
3M (TC) M3BBA-2418R	Gold	Multiple Ribbon	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC				24	Socket to Socket	0.1 in	2.54 mm	1.5 ft	457.2 mm
3M (TC) M3BBA-5006R	Gold	Multiple Ribbon	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	152.4 mm	6 "	0.5 '	50	Socket to Socket	0.1 in	2.54 mm
3M (TC) M3BBA-6006J	Gold		0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	152.4 mm	6 "	0.5 '	60	Socket to Socket	0.1 in	2.54 mm
3M (TC) M3BBA-2606R	Gold	Multiple Ribbon	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	152.4 mm	6 "	0.5 '	26	Socket to Socket	0.1 in	2.54 mm
3M (TC) M3BBA-5036J	Gold		0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC				50	Socket to Socket	0.1 in	2.54 mm	3 ft	914.4 mm
3M (TC) M3BBA-2660K	Gold	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	1.52 m			26	Socket to Socket	0.1 in	2.54 mm			5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.69
		10	$ 8.98
		25	$ 8.11
		50	$ 7.52
		100	$ 6.99
		250	$ 6.37
		500	$ 5.94
		1000	$ 5.56

Description

General part information

M3BBA Series

60 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

891 Series Datasheet

Datasheet
