M3BBA-5006R

Active

3M (TC)

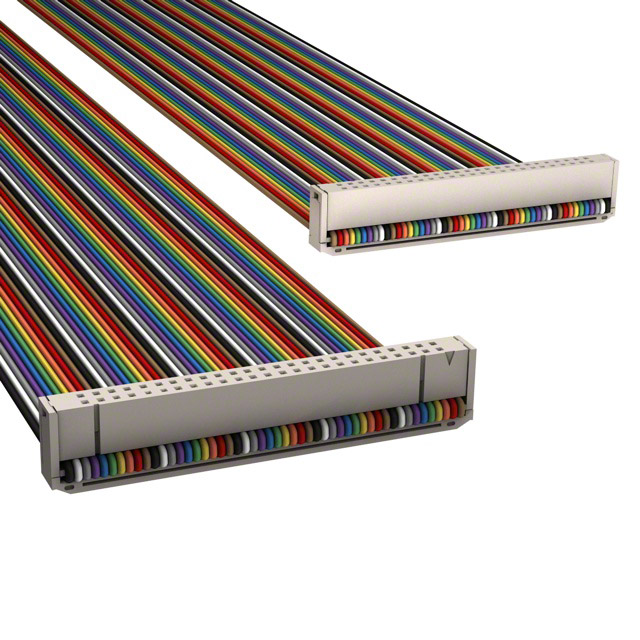

IDC CABLE - MSR50A/MC50M/MSR50A

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 Series 891 Series Datasheet +1

M3BBA-5006R

Active

3M (TC)

IDC CABLE - MSR50A/MC50M/MSR50A

Deep-Dive with AI

Documents1700 Series 891 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3BBA-5006R

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3BBA Series

Part	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch - Cable	Pitch - Cable	Number of Rows	Shielding	Cable Termination	Length	Length	Length	Number of Positions	Connector Type	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length
3M (TC) M3BBA-6006R	Gold	Multiple Ribbon	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	152.4 mm	6 "	0.5 '	60	Socket to Socket	0.1 in	2.54 mm
3M (TC) M3BBA-3406J	Gold		0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	152.4 mm	6 "	0.5 '	34	Socket to Socket	0.1 in	2.54 mm
3M (TC) M3BBA-1036R	Gold	Multiple Ribbon	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC				10	Socket to Socket	0.1 in	2.54 mm	3 ft	914.4 mm
3M (TC) M3BBA-4006R	Gold	Multiple Ribbon	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	152.4 mm	6 "	0.5 '	40	Socket to Socket	0.1 in	2.54 mm
3M (TC) M3BBA-2418R	Gold	Multiple Ribbon	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC				24	Socket to Socket	0.1 in	2.54 mm	1.5 ft	457.2 mm
3M (TC) M3BBA-5006R	Gold	Multiple Ribbon	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	152.4 mm	6 "	0.5 '	50	Socket to Socket	0.1 in	2.54 mm
3M (TC) M3BBA-6006J	Gold		0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	152.4 mm	6 "	0.5 '	60	Socket to Socket	0.1 in	2.54 mm
3M (TC) M3BBA-2606R	Gold	Multiple Ribbon	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	152.4 mm	6 "	0.5 '	26	Socket to Socket	0.1 in	2.54 mm
3M (TC) M3BBA-5036J	Gold		0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC				50	Socket to Socket	0.1 in	2.54 mm	3 ft	914.4 mm
3M (TC) M3BBA-2660K	Gold	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	2	Unshielded	IDC	1.52 m			26	Socket to Socket	0.1 in	2.54 mm			5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.99
		10	$ 7.23
		25	$ 6.83
		50	$ 6.66
		100	$ 6.33
		250	$ 5.66
		500	$ 5.33
		1000	$ 4.66

Description

General part information

M3BBA Series

50 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

1700 Series

Datasheet

891 Series Datasheet

Datasheet
