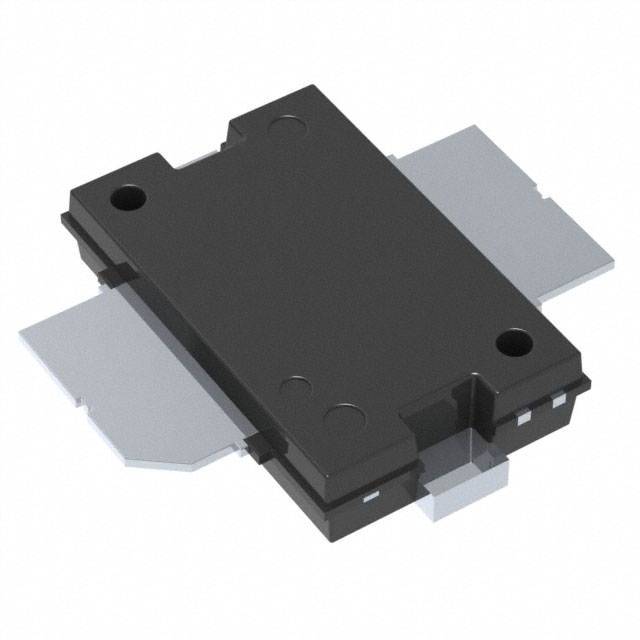

BLP9G0722-20Z

Ampleon USA Inc.

RF MOSFET LDMOS 28V SOT1482-1

Search across all available documentation for this part.

Ampleon USA Inc.

RF MOSFET LDMOS 28V SOT1482-1

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Power - Output	Package / Case	Supplier Device Package	Voltage - Test	Current Rating (Amps)	Mounting Type	Gain	Frequency	Configuration	Frequency [Max]	Frequency [Min]	Current - Test	Technology
Ampleon USA Inc. BLP9LA25SGXY	40 V	25 W	TO-270BA	TO-270-2G-1	13.6 V	1.4 µA	Surface Mount	18.4 dB	941 MHz	N-Channel
Ampleon USA Inc. BLP9G0722-20Z	65 V	43 dBm	SOT-1482-1	SOT-1482-1	28 V	1.4 µA	Surface Mount	19 dB			2.7 GHz	400 MHz
Ampleon USA Inc. BLP9H10S-850AVTZ	105 V	850 W	OMP-1230-6F-1	OMP-1230-6F-1	50 V	2.8 µA	Surface Mount	17.8 dB		2 N-Channel (Dual) Common Source	960 MHz	617 MHz	1.4 A	LDMOS (Dual) Common Source
Ampleon USA Inc. BLP9H10-30GZ			SOT-1483-1	SOT1483-1			Surface Mount
Ampleon USA Inc. BLP9LA25SXY	40 V	25 W	TO-270AA	TO-270-2F-1	13.6 V	1.4 µA	Surface Mount	18.4 dB	941 MHz	N-Channel
Ampleon USA Inc. BLP9H10S-500AWTY	105 V	500 W	OMP-780-6F-1	OMP-780-6F-1	300 mV	1.4 µA	Surface Mount	18.3 dB		Dual	960 MHz	600 MHz
Ampleon USA Inc. BLP9G0722-20GZ	65 V	43 dBm	SOT-1483-1	SOT1483-1	28 V	1.4 µA	Surface Mount	19 dB			2.7 GHz	400 MHz
Ampleon USA Inc. BLP9H10S-850AVTY	105 V	850 W	OMP-1230-6F-1	OMP-1230-6F-1	50 V	2.8 µA		17.8 dB		Common Source Dual	960 MHz	617 MHz	1.4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 28 V 180 mA 400MHz ~ 2.7GHz 19dB 43dBm SOT-1482-1
