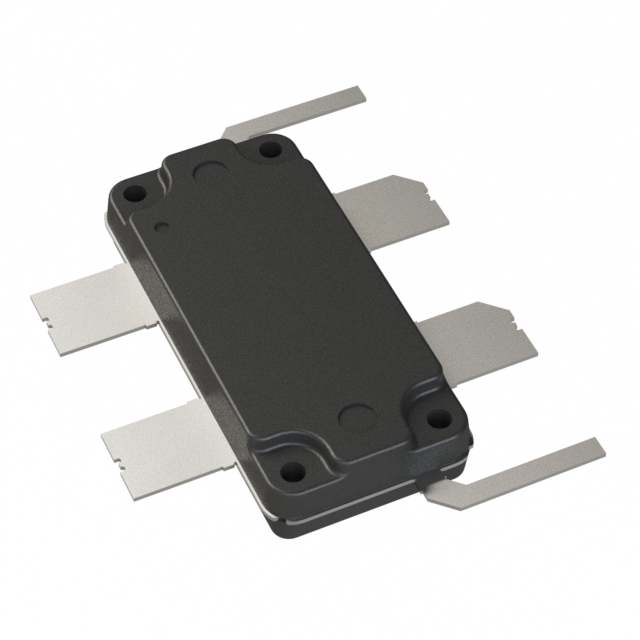

BLP9H10S-500AWTY

Active

Ampleon USA Inc.

RF MOSFET LDMOS 300 MV OMP780

Search across all available documentation for this part.

Active

Ampleon USA Inc.

RF MOSFET LDMOS 300 MV OMP780

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Power - Output	Package / Case	Supplier Device Package	Voltage - Test	Current Rating (Amps)	Mounting Type	Gain	Frequency	Configuration	Frequency [Max]	Frequency [Min]	Current - Test	Technology
Ampleon USA Inc. BLP9LA25SGXY	40 V	25 W	TO-270BA	TO-270-2G-1	13.6 V	1.4 µA	Surface Mount	18.4 dB	941 MHz	N-Channel
Ampleon USA Inc. BLP9G0722-20Z	65 V	43 dBm	SOT-1482-1	SOT-1482-1	28 V	1.4 µA	Surface Mount	19 dB			2.7 GHz	400 MHz
Ampleon USA Inc. BLP9H10S-850AVTZ	105 V	850 W	OMP-1230-6F-1	OMP-1230-6F-1	50 V	2.8 µA	Surface Mount	17.8 dB		2 N-Channel (Dual) Common Source	960 MHz	617 MHz	1.4 A	LDMOS (Dual) Common Source
Ampleon USA Inc. BLP9H10-30GZ			SOT-1483-1	SOT1483-1			Surface Mount
Ampleon USA Inc. BLP9LA25SXY	40 V	25 W	TO-270AA	TO-270-2F-1	13.6 V	1.4 µA	Surface Mount	18.4 dB	941 MHz	N-Channel
Ampleon USA Inc. BLP9H10S-500AWTY	105 V	500 W	OMP-780-6F-1	OMP-780-6F-1	300 mV	1.4 µA	Surface Mount	18.3 dB		Dual	960 MHz	600 MHz
Ampleon USA Inc. BLP9G0722-20GZ	65 V	43 dBm	SOT-1483-1	SOT1483-1	28 V	1.4 µA	Surface Mount	19 dB			2.7 GHz	400 MHz
Ampleon USA Inc. BLP9H10S-850AVTY	105 V	850 W	OMP-1230-6F-1	OMP-1230-6F-1	50 V	2.8 µA		17.8 dB		Common Source Dual	960 MHz	617 MHz	1.4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 300 mV 500 mA 600MHz ~ 960MHz 18.3dB 500W OMP-780-6F-1
