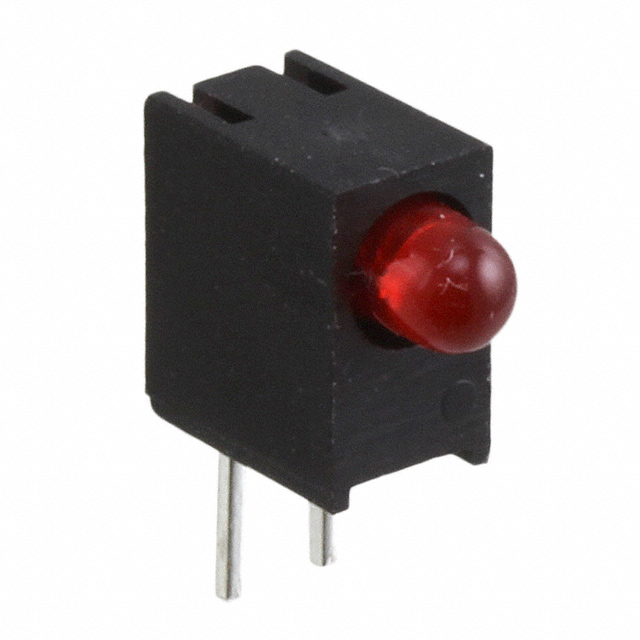

WP934EW/ID

Active

Kingbright

LED CBI 3MM RED DIFF RA

Search across all available documentation for this part.

Active

Kingbright

LED CBI 3MM RED DIFF RA

Technical Specifications

Parameters and characteristics for this part

Part	Lens Size	Lens Size	Color	Millicandela Rating	Viewing Angle [custom]	Configuration	Wavelength - Peak	Lens Type	Lens Style	Mounting Type	Current	Voltage Rating	Lens Size [diameter]
Kingbright WP934RS/ID	3 mm	T-1	Red	30 mcd	40 °	Single	627 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	30 mA	2 V
Kingbright WP934SB/4YD	3 mm	T-1	Yellow (x 4)	15 mcd	40 °	4 High	590 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	30 mA	2.1 V
Kingbright WP934SB/4LGD			Green (x 4)	2 mcd	40 °	4 High	568 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	25 mA	1.9 V	2.9 mm
Kingbright WP934RS/GD	3 mm	T-1	Green	30 mcd	40 °	Single	565 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	25 mA
Kingbright WP934EW/SRD	3 mm	T-1	Red	400 mcd	40 °	Single	655 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	30 mA	1.85 V
Kingbright WP934EB/2ID	3 mm	T-1	Red	22.5 mcd	40 °	2 High	627 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle		2 V
Kingbright WP934EW/ID	3 mm	T-1	Red	30 mcd	40 °	Single	627 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	30 mA	2 V
Kingbright WP934EW/YD	3 mm	T-1	Yellow	15 mcd	40 °	Single	590 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	30 mA	2.1 V
Kingbright WP934GE/2GD-RV	3 mm	T-1	Green (x 2)	25 mcd	40 °	2 High	568 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	25 mA	2 V
Kingbright WP934RZ/3GD	3 mm	T-1	Green (x 3)	25 mcd	40 °	3 High	565 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	25 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2V 30mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
