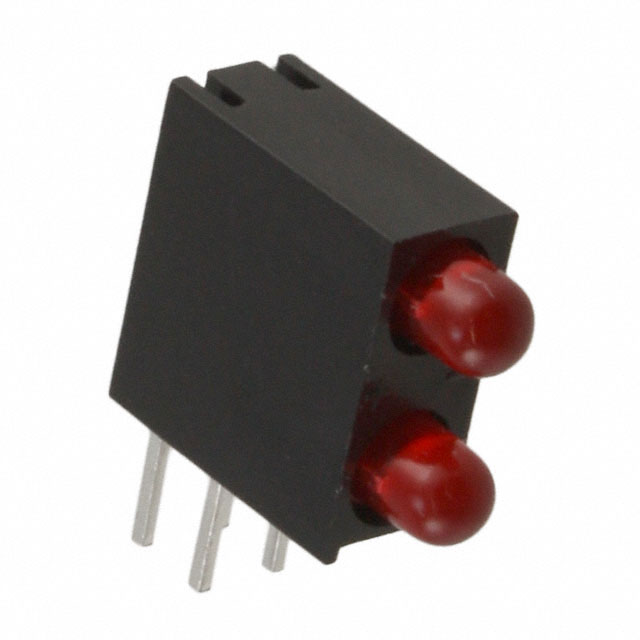

WP934EB/2ID

Active

Kingbright

LED CBI 3MM BI-LVL RED DIFF RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP934EB/2ID

Active

Kingbright

LED CBI 3MM BI-LVL RED DIFF RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP934EB/2ID

Color	Red
Configuration	2 High
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	22.5 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle [custom]	40 °
Voltage Rating	2 V
Wavelength - Peak	627 nm

WP934 Series

Part	Lens Size	Lens Size	Color	Millicandela Rating	Viewing Angle [custom]	Configuration	Wavelength - Peak	Lens Type	Lens Style	Mounting Type	Current	Voltage Rating	Lens Size [diameter]
Kingbright WP934RS/ID	3 mm	T-1	Red	30 mcd	40 °	Single	627 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	30 mA	2 V
Kingbright WP934SB/4YD	3 mm	T-1	Yellow (x 4)	15 mcd	40 °	4 High	590 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	30 mA	2.1 V
Kingbright WP934SB/4LGD			Green (x 4)	2 mcd	40 °	4 High	568 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	25 mA	1.9 V	2.9 mm
Kingbright WP934RS/GD	3 mm	T-1	Green	30 mcd	40 °	Single	565 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	25 mA
Kingbright WP934EW/SRD	3 mm	T-1	Red	400 mcd	40 °	Single	655 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	30 mA	1.85 V
Kingbright WP934EB/2ID	3 mm	T-1	Red	22.5 mcd	40 °	2 High	627 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle		2 V
Kingbright WP934EW/ID	3 mm	T-1	Red	30 mcd	40 °	Single	627 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	30 mA	2 V
Kingbright WP934EW/YD	3 mm	T-1	Yellow	15 mcd	40 °	Single	590 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	30 mA	2.1 V
Kingbright WP934GE/2GD-RV	3 mm	T-1	Green (x 2)	25 mcd	40 °	2 High	568 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	25 mA	2 V
Kingbright WP934RZ/3GD	3 mm	T-1	Green (x 3)	25 mcd	40 °	3 High	565 nm	Diffused Tinted	Round with Domed Top	Through Hole Right Angle	25 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.14
		10	$ 0.72
		100	$ 0.53
		500	$ 0.49
		1000	$ 0.40
		2000	$ 0.38
		5000	$ 0.37
		10000	$ 0.37
		25000	$ 0.36

Description

General part information

WP934 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Red (x 2) Diffused, Tinted 2V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
