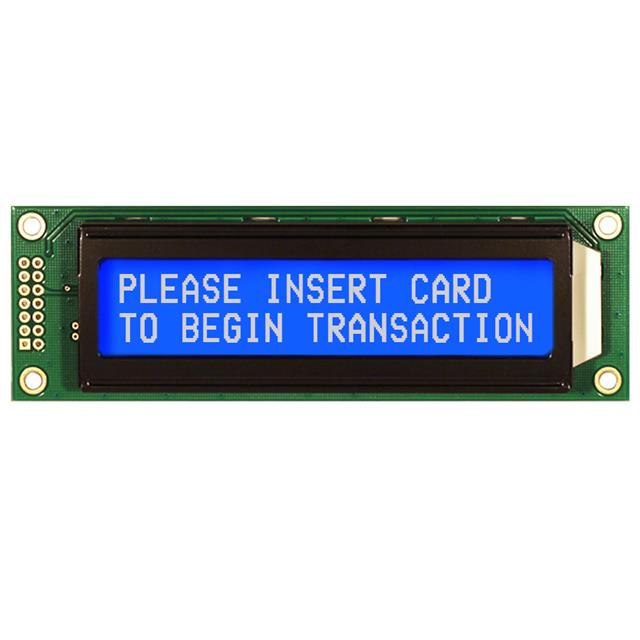

NHD-0220D3Z-NSW-BBW-V3
ActiveNewhaven Display Intl
LCD MOD 40DIG 20X2 TRANSMISV WHT
Deep-Dive with AI
Search across all available documentation for this part.
NHD-0220D3Z-NSW-BBW-V3
ActiveNewhaven Display Intl
LCD MOD 40DIG 20X2 TRANSMISV WHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-0220D3Z-NSW-BBW-V3 |
|---|---|
| Background Color | Blue |
| Backlight | LED - White |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 3.2 mm |
| Character Size [z] | 5.55 mm |
| Controller Type | PIC16F697 |
| Display Format [x] | 20 |
| Display Format [y] | 2 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [custom] | 0.65 mm |
| Dot Size [custom] | 0.6 mm |
| Interface | I2C, SPI, RS-232 |
| Number of Characters | 40 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 116 mm |
| Outline L x W x H [y] | 37 mm |
| Outline L x W x H [z] | 13.5 mm |
| Text Color | White |
| Viewing Area [x] | 83 mm |
| Viewing Area [y] | 18.6 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.7 V |
NHD-0220 Series
| Part | Background Color | Character Format [y] | Character Format [x] | Viewing Area [y] | Viewing Area [x] | Display Format [x] | Display Format [y] | Controller Type | Interface | Dot Size [custom] | Dot Size [custom] | Outline L x W x H [y] | Outline L x W x H [x] | Outline L x W x H [z] | Text Color | Character Size [y] | Character Size [z] | Display Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Characters | Display Mode | Dot Size [custom] | Dot Size [custom] | Voltage - Supply [Max] | Voltage - Supply [Min] | Backlight | Character Size [x] | Dot Size [x] | Dot Size [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Newhaven Display Intl | Green | 8 Dots | 5 Dots | 23 mm | 149 mm | 20 | 2 | KS0066U | Parallel | 1.12 mm | 1.12 mm | 40 mm | 180 mm | 13.9 mm | Blue | 6 mm | 9.66 mm | STN - Super-Twisted Nematic | -20 C | 70 °C | 40 | Transflective | ||||||||
Newhaven Display Intl | Green | 8 Dots | 5 Dots | 20 | 2 | SPLC780D ST7066U | Parallel | 37 mm | 116 mm | 13.9 mm | Blue | 3.2 mm | 5.55 mm | STN - Super-Twisted Nematic | -20 C | 70 °C | 40 | Transflective | 0.65 mm | 0.6 mm | 5.5 V | 4.7 V | ||||||||
Newhaven Display Intl | Blue | 8 Dots | 5 Dots | 18.6 mm | 83 mm | 20 | 2 | SPLC780D ST7066U | Parallel | 37 mm | 116 mm | 13.5 mm | White | 3.2 mm | 5.95 mm | FSTN - Film Super-Twisted Nematic | -20 C | 70 °C | 40 | Transmissive | 0.65 mm | 0.6 mm | 5.5 V | 4.5 V | LED - White | |||||
Newhaven Display Intl | White | 8 Dots | 5 Dots | 35.2 mm | 147 mm | 20 | 2 | S6A0069 | Parallel | 60 mm | 182 mm | 14 mm | Black | 12.7 mm | FSTN - Film Super-Twisted Nematic | -20 C | 70 °C | 40 | Transflective | 5.5 V | 4.7 V | LED - White | 5.9 mm | |||||||
Newhaven Display Intl | Blue | 8 Dots | 5 Dots | 18.6 mm | 83 mm | 20 | 2 | PIC16F697 | I2C RS-232 SPI | 37 mm | 116 mm | 13.5 mm | White | 3.2 mm | 5.55 mm | STN - Super-Twisted Nematic | -20 C | 70 °C | 40 | Transmissive | 0.65 mm | 0.6 mm | 5.5 V | 4.7 V | LED - White | |||||
Newhaven Display Intl | White | 8 Dots | 5 Dots | 10.8 mm | 46 mm | 20 | 2 | Parallel | 20 mm | 65 mm | 8 mm | Gray | 3.23 mm | STN - Super-Twisted Nematic | -20 C | 70 °C | 40 | Transflective | 3.3 V | 3 V | LED - White | 1.85 mm | 0.33 mm | 0.36 mm | ||||||
Newhaven Display Intl | Green | 8 Dots | 5 Dots | 18.6 mm | 83 mm | 20 | 2 | SPLC780D ST7066U | Parallel | 37 mm | 116 mm | 13.5 mm | Blue | 3.2 mm | 5.95 mm | STN - Super-Twisted Nematic | -20 C | 70 °C | 40 | Transflective | 0.65 mm | 0.6 mm | 5.5 V | 4.7 V | ||||||
Newhaven Display Intl | White | 8 Dots | 5 Dots | 18.6 mm | 83 mm | 20 | 2 | SPLC780D ST7066U | Parallel | 37 mm | 116 mm | 13.5 mm | Black | 3.2 mm | 5.95 mm | FSTN - Film Super-Twisted Nematic | -20 C | 70 °C | 40 | Transflective | 0.65 mm | 0.6 mm | 5.5 V | 4.7 V | LED - White | |||||
Newhaven Display Intl | White | 8 Dots | 5 Dots | 23 mm | 123 mm | 20 | 2 | ST7066U | Parallel | 43 mm | 146 mm | 13.7 mm | Blue | 4.84 mm | 9.22 mm | STN - Super-Twisted Nematic | -20 C | 70 °C | 40 | Transflective | 5.5 V | 4.5 V | LED - White | 0.92 mm | 1.1 mm | |||||
Newhaven Display Intl | Green | 8 Dots | 5 Dots | 23 mm | 123 mm | 20 | 2 | SPLC780D ST7066U | Parallel | 43 mm | 146 mm | 14.2 mm | Blue | 4.84 mm | 9.22 mm | STN - Super-Twisted Nematic | -20 C | 70 °C | 40 | Transflective | 5.5 V | 4.7 V | 0.92 mm | 1.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.59 | |
| 5 | $ 24.05 | |||
| 10 | $ 22.52 | |||
| 50 | $ 21.24 | |||
| 100 | $ 20.22 | |||
| 250 | $ 19.22 | |||
Description
General part information
NHD-0220 Series
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White I2C, RS-232, SPI 116.00mm x 37.00mm x 13.50mm
