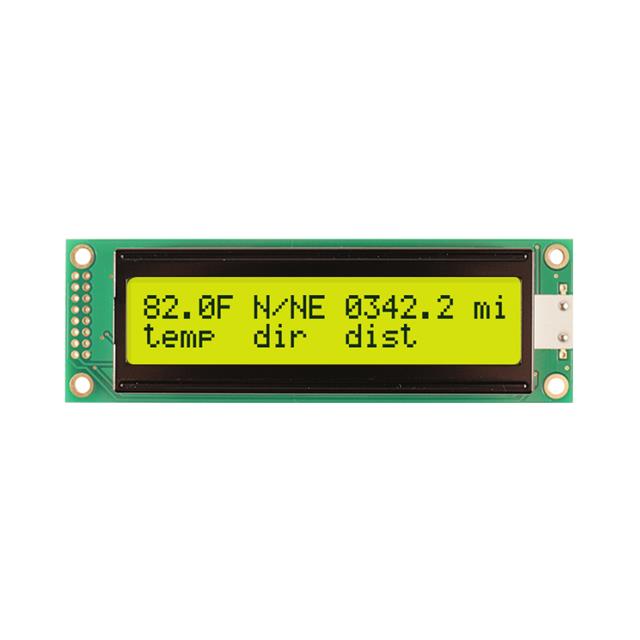

NHD-0220DZ-FL-YBW

Active

Newhaven Display Intl

LCD MOD 40DIG 20X2 TRANS YLW/GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLCD Solvent Precautions Datasheet +1

NHD-0220DZ-FL-YBW

Active

Newhaven Display Intl

LCD MOD 40DIG 20X2 TRANS YLW/GRN

Deep-Dive with AI

DocumentsLCD Solvent Precautions Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-0220DZ-FL-YBW

Background Color	Green
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [y]	3.2 mm
Character Size [z]	5.55 mm
Controller Type	SPLC780D, ST7066U
Display Format [x]	20
Display Format [y]	2
Display Mode	Transflective
Display Type	STN - Super-Twisted Nematic
Dot Size [custom]	0.65 mm
Dot Size [custom]	0.6 mm
Interface	Parallel
Number of Characters	40
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	116 mm
Outline L x W x H [y]	37 mm
Outline L x W x H [z]	13.9 mm
Text Color	Blue
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.7 V

NHD-0220 Series

Part	Background Color	Character Format [y]	Character Format [x]	Viewing Area [y]	Viewing Area [x]	Display Format [x]	Display Format [y]	Controller Type	Interface	Dot Size [custom]	Dot Size [custom]	Outline L x W x H [y]	Outline L x W x H [x]	Outline L x W x H [z]	Text Color	Character Size [y]	Character Size [z]	Display Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Characters	Display Mode	Dot Size [custom]	Dot Size [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Backlight	Character Size [x]	Dot Size [x]	Dot Size [y]
Newhaven Display Intl NHD-0220WH-LYGH-JT#	Green	8 Dots	5 Dots	23 mm	149 mm	20	2	KS0066U	Parallel	1.12 mm	1.12 mm	40 mm	180 mm	13.9 mm	Blue	6 mm	9.66 mm	STN - Super-Twisted Nematic	-20 C	70 °C	40	Transflective
Newhaven Display Intl NHD-0220DZ-FL-YBW	Green	8 Dots	5 Dots			20	2	SPLC780D ST7066U	Parallel			37 mm	116 mm	13.9 mm	Blue	3.2 mm	5.55 mm	STN - Super-Twisted Nematic	-20 C	70 °C	40	Transflective	0.65 mm	0.6 mm	5.5 V	4.7 V
Newhaven Display Intl NHD-0220DZ-NSW-FBW	Blue	8 Dots	5 Dots	18.6 mm	83 mm	20	2	SPLC780D ST7066U	Parallel			37 mm	116 mm	13.5 mm	White	3.2 mm	5.95 mm	FSTN - Film Super-Twisted Nematic	-20 C	70 °C	40	Transmissive	0.65 mm	0.6 mm	5.5 V	4.5 V	LED - White
Newhaven Display Intl NHD-0220JZ-FSW-FBW	White	8 Dots	5 Dots	35.2 mm	147 mm	20	2	S6A0069	Parallel			60 mm	182 mm	14 mm	Black	12.7 mm		FSTN - Film Super-Twisted Nematic	-20 C	70 °C	40	Transflective			5.5 V	4.7 V	LED - White	5.9 mm
Newhaven Display Intl NHD-0220D3Z-NSW-BBW-V3	Blue	8 Dots	5 Dots	18.6 mm	83 mm	20	2	PIC16F697	I2C RS-232 SPI			37 mm	116 mm	13.5 mm	White	3.2 mm	5.55 mm	STN - Super-Twisted Nematic	-20 C	70 °C	40	Transmissive	0.65 mm	0.6 mm	5.5 V	4.7 V	LED - White
Newhaven Display Intl NHD-0220FZ-FSW-GBW-P-3V3	White	8 Dots	5 Dots	10.8 mm	46 mm	20	2		Parallel			20 mm	65 mm	8 mm	Gray	3.23 mm		STN - Super-Twisted Nematic	-20 C	70 °C	40	Transflective			3.3 V	3 V	LED - White	1.85 mm	0.33 mm	0.36 mm
Newhaven Display Intl NHD-0220DZ-FL-GBW	Green	8 Dots	5 Dots	18.6 mm	83 mm	20	2	SPLC780D ST7066U	Parallel			37 mm	116 mm	13.5 mm	Blue	3.2 mm	5.95 mm	STN - Super-Twisted Nematic	-20 C	70 °C	40	Transflective	0.65 mm	0.6 mm	5.5 V	4.7 V
Newhaven Display Intl NHD-0220DZ-FSW-FBW	White	8 Dots	5 Dots	18.6 mm	83 mm	20	2	SPLC780D ST7066U	Parallel			37 mm	116 mm	13.5 mm	Black	3.2 mm	5.95 mm	FSTN - Film Super-Twisted Nematic	-20 C	70 °C	40	Transflective	0.65 mm	0.6 mm	5.5 V	4.7 V	LED - White
Newhaven Display Intl NHD-0220WH-MTGH-JT#E	White	8 Dots	5 Dots	23 mm	123 mm	20	2	ST7066U	Parallel			43 mm	146 mm	13.7 mm	Blue	4.84 mm	9.22 mm	STN - Super-Twisted Nematic	-20 C	70 °C	40	Transflective			5.5 V	4.5 V	LED - White		0.92 mm	1.1 mm
Newhaven Display Intl NHD-0220AZ-FL-YBW	Green	8 Dots	5 Dots	23 mm	123 mm	20	2	SPLC780D ST7066U	Parallel			43 mm	146 mm	14.2 mm	Blue	4.84 mm	9.22 mm	STN - Super-Twisted Nematic	-20 C	70 °C	40	Transflective			5.5 V	4.7 V			0.92 mm	1.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.85
		5	$ 16.78
		10	$ 15.71
		50	$ 14.82
		100	$ 14.10
		250	$ 13.39
		500	$ 12.85

Description

General part information

NHD-0220 Series

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 116.00mm x 37.00mm x 13.90mm

NHD-0220DZ-FL-YBW
