LZ4-40R608-0000

Active

ams-OSRAM USA INC.

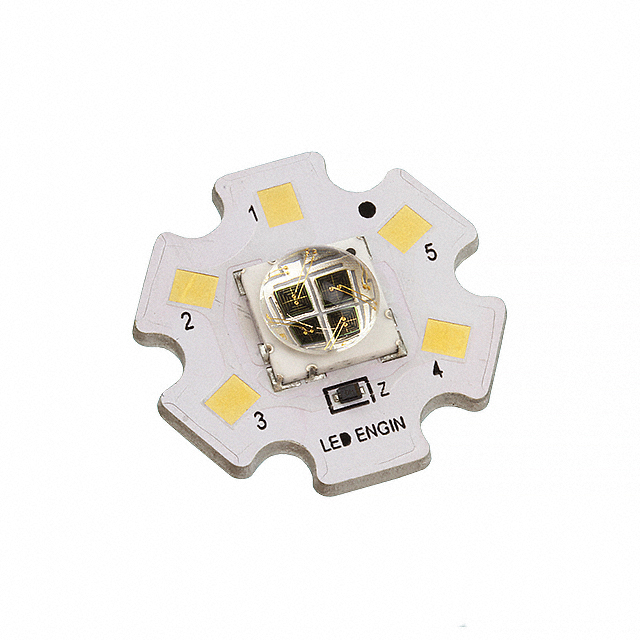

EMITTER IR 850NM 1A STAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LZ4-40R608-0000

Active

ams-OSRAM USA INC.

EMITTER IR 850NM 1A STAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LZ4-40R608-0000

Current - DC Forward (If) (Max)	1 A
Mounting Type	Screw Mount
Operating Temperature	145 °C
Orientation	Top View
Package / Case	Star Array
Type	Infrared (IR)
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	12.4 V
Wavelength	850 nm

LZ4-40 Series

Part	Mounting Type	Orientation	Wavelength [Min]	Wavelength [Max]	Voltage - Forward (Vf) (Typ)	Type	Operating Temperature	Viewing Angle [custom]	Current - DC Forward (If) (Max)	Package / Case	Wavelength	Viewing Angle	Light Emitting Surface (LES) [diameter]	Features	Size / Dimension [diameter]	Lens Type	Height [z]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Configuration	CCT (K)	Luminous Flux @ Current/Temperature	Color	Current - Max [Max]	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test
ams-OSRAM USA INC. LZ4-40UB00-00U5	Surface Mount	Top View	390 nm	395 nm	14.8 V	Ultraviolet (UV)	130 °C	90 °	1 A	Star Array
ams-OSRAM USA INC. LZ4-40UA00-00U5	Screw Mount	Top View			4.1 V	Ultraviolet (UV)	125 ¯C		1 A	Star Array	395 nm	97 °
ams-OSRAM USA INC. LZ4-40DB0R-0000						LED Module							6.4 mm	With Connector	19.9 mm	Domed	5.6 mm	2400 mW	3800 mW	Starboard
ams-OSRAM USA INC. LZ4-40R608-0000	Screw Mount	Top View			12.4 V	Infrared (IR)	145 °C		1 A	Star Array	850 nm	100 °
ams-OSRAM USA INC. LZ4-40UB00-00U7	Surface Mount	Top View			14.8 V	Ultraviolet (UV)	130 °C	90 °	1 A	Star Array
ams-OSRAM USA INC. LZ4-40UB00-00U8	Surface Mount	Top View	405 nm	410 nm	14.8 V	Ultraviolet (UV)	130 °C	90 °	1 A	Star Array	408 nm
ams-OSRAM USA INC. LZ4-40GW08-0027					13.2 V	LED Module						105 °	5.6 mm		19.9 mm	Domed	5.4 mm	356 lm	445 lm	Starboard	2700 K	401 lm	Warm White	1 A	98	43 lm/W
ams-OSRAM USA INC. LZ4-40UA00-00U4	Screw Mount	Top View			4.1 V	Ultraviolet (UV)	125 ¯C		1 A	Star Array	390 nm	97 °
ams-OSRAM USA INC. LZ4-40UA00-00U8	Screw Mount	Top View			4.1 V	Ultraviolet (UV)	125 ¯C		1 A	Star Array	410 nm	97 °
ams-OSRAM USA INC. LZ4-40UA00-00U7	Screw Mount	Top View			4.1 V	Ultraviolet (UV)	125 ¯C		1 A	Star Array	405 nm	97 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 19.91
		10	$ 15.02
		80	$ 12.62
		480	$ 11.59

Description

General part information

LZ4-40 Series

Infrared (IR) Emitter 850nm 12.4V 1A 100° Star Array
