0050361669

Obsolete

Molex

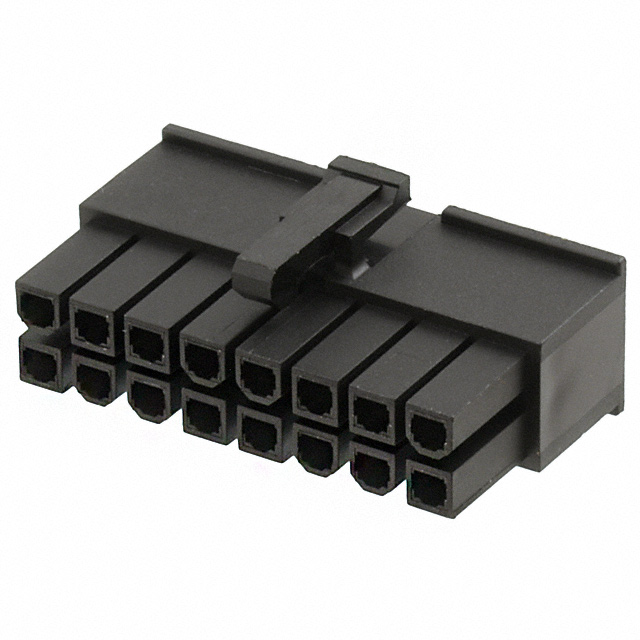

CONN RCPT HSG 16POS 4.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMoisturizing Nylon Connector Parts Mini-Fit Jr Test Summary +2

0050361669

Obsolete

Molex

CONN RCPT HSG 16POS 4.20MM

Deep-Dive with AI

DocumentsMoisturizing Nylon Connector Parts Mini-Fit Jr Test Summary +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0050361669

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Pitch [x]	4.2 mm
Pitch [x]	0.165 in
Row Spacing	4.2 mm
Row Spacing	0.165 in

005036 Series

Part	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Shape	Number of Rows	Number of Positions Loaded	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Style	Fastening Type	Termination	Insulation Color	Applications	Number of Positions	Mounting Type	Contact Material	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Color	Contact Termination	Note	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Finish - Mating
Molex 0050361702	Shrouded - 4 Wall	2.54 µm	100 µin	3.5 mm	0.138 in	Square	2	All	Tin	4.2 mm	0.165 in	UL94 V-0	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	Male Pin	4.2 mm	0.165 in	12.8 mm	0.504 in	Board to Cable/Wire	Locking Ramp	Solder	Black	General Purpose Industrial Telecommunications	4	Through Hole	Brass
Molex 0050361668							2							Receptacle			Female Socket						Latch Lock				18	Free Hanging (In-Line)		4.2 mm	0.165 in	4.2 mm	0.165 in	Black	Crimp	Contacts Not Included
Molex 0050361868	Shrouded - 4 Wall	2.54 µm	100 µin			Square	2	All	Tin	4.2 mm	0.165 in	UL94 V-0	Polyamide (PA66) Nylon 6/6	Header	2.54 çm	100 çin	Male Pin	4.2 mm	0.165 in	9.65 mm	0.38 in	Board to Cable/Wire	Locking Ramp	Solder	Natural	General Purpose Industrial Telecommunications	24	Through Hole Right Angle	Brass Alloy								Varies by Wire Gauge	-40 °C	105 ░C	600 VAC	3.56 mm	0.14 in
Molex 0050361747	Shrouded - 4 Wall	2.54 µm	100 µin	3.5 mm	0.138 in	Square	1	All	Tin	4.2 mm	0.165 in	UL94 V-0	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	Male Pin			12.8 mm	0.504 in	Board to Cable/Wire	Locking Ramp	Solder	Black	General Purpose Industrial Telecommunications		Through Hole Right Angle	Brass
Molex 0050361893							1							Plug			Male Pin						Locking Ramp					Panel Mount Snap-In				4.2 mm	0.165 in	Black	Crimp	Contacts Not Included
Molex 0050362377	Shrouded - 4 Wall	2.54 µm	100 µin	3.6 mm	0.142 in	Square	2	All	Tin	4.2 mm	0.165 in	UL94 V-0	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	Male Pin	4.2 mm	0.165 in			Board to Cable/Wire	Locking Ramp	Solder	Black	General Purpose Industrial Telecommunications	6	Through Hole Right Angle	Brass
Molex 0050361669							2							Receptacle			Female Socket						Latch Lock					Free Hanging (In-Line)		4.2 mm	0.165 in	4.2 mm	0.165 in	Black	Crimp	Contacts Not Included							16
Molex 0050362426	Shrouded - 4 Wall	2.54 µm	100 µin	3.6 mm	0.142 in	Square	2	All	Tin	4.2 mm	0.165 in	UL94 V-0		Header	2.54 çm	100 çin	Male Pin	4.2 mm	0.165 in			Board to Cable/Wire	Locking Ramp	Solder	Black	General Purpose Industrial Telecommunications		Through Hole Right Angle	Brass														16
Molex 0050361816	Shrouded - 4 Wall	2.54 µm	100 µin	3.6 mm	0.142 in	Square	2	All	Tin	4.2 mm	0.165 in	UL94 V-0	Polyamide (PA66) Nylon 6/6	Header	0.76 Ám	30 Áin	Male Pin	4.2 mm	0.165 in			Board to Cable/Wire	Locking Ramp	Solder	Natural	General Purpose Industrial Telecommunications	14	Through Hole Right Angle	Brass															Gold
Molex 0050361689							1							Receptacle			Male or Female						Latch Lock					Free Hanging (In-Line)				6.71 mm	0.264 in	Black	Crimp	Contacts Not Included
