0050362377

Obsolete

Molex

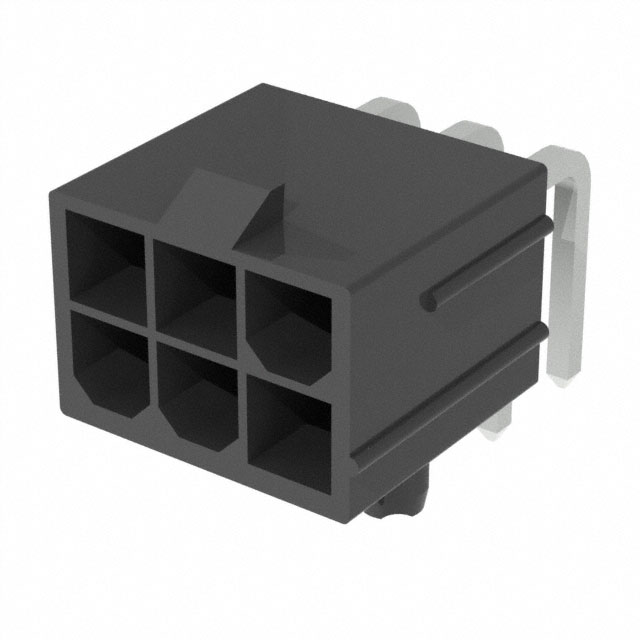

CONN HEADER R/A 6POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMini-Fit Jr Color Variation Spec Tin Whisker Formation Change 27/Jul/2011 +3

0050362377

Obsolete

Molex

CONN HEADER R/A 6POS 4.2MM

Deep-Dive with AI

DocumentsMini-Fit Jr Color Variation Spec Tin Whisker Formation Change 27/Jul/2011 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0050362377

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

005036 Series

Part	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Shape	Number of Rows	Number of Positions Loaded	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Style	Fastening Type	Termination	Insulation Color	Applications	Number of Positions	Mounting Type	Contact Material	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Color	Contact Termination	Note	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Finish - Mating
Molex 0050361702	Shrouded - 4 Wall	2.54 µm	100 µin	3.5 mm	0.138 in	Square	2	All	Tin	4.2 mm	0.165 in	UL94 V-0	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	Male Pin	4.2 mm	0.165 in	12.8 mm	0.504 in	Board to Cable/Wire	Locking Ramp	Solder	Black	General Purpose Industrial Telecommunications	4	Through Hole	Brass
Molex 0050361668							2							Receptacle			Female Socket						Latch Lock				18	Free Hanging (In-Line)		4.2 mm	0.165 in	4.2 mm	0.165 in	Black	Crimp	Contacts Not Included
Molex 0050361868	Shrouded - 4 Wall	2.54 µm	100 µin			Square	2	All	Tin	4.2 mm	0.165 in	UL94 V-0	Polyamide (PA66) Nylon 6/6	Header	2.54 çm	100 çin	Male Pin	4.2 mm	0.165 in	9.65 mm	0.38 in	Board to Cable/Wire	Locking Ramp	Solder	Natural	General Purpose Industrial Telecommunications	24	Through Hole Right Angle	Brass Alloy								Varies by Wire Gauge	-40 °C	105 ░C	600 VAC	3.56 mm	0.14 in
Molex 0050361747	Shrouded - 4 Wall	2.54 µm	100 µin	3.5 mm	0.138 in	Square	1	All	Tin	4.2 mm	0.165 in	UL94 V-0	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	Male Pin			12.8 mm	0.504 in	Board to Cable/Wire	Locking Ramp	Solder	Black	General Purpose Industrial Telecommunications		Through Hole Right Angle	Brass
Molex 0050361893							1							Plug			Male Pin						Locking Ramp					Panel Mount Snap-In				4.2 mm	0.165 in	Black	Crimp	Contacts Not Included
Molex 0050362377	Shrouded - 4 Wall	2.54 µm	100 µin	3.6 mm	0.142 in	Square	2	All	Tin	4.2 mm	0.165 in	UL94 V-0	Nylon Polyamide (PA)	Header	2.54 çm	100 çin	Male Pin	4.2 mm	0.165 in			Board to Cable/Wire	Locking Ramp	Solder	Black	General Purpose Industrial Telecommunications	6	Through Hole Right Angle	Brass
Molex 0050361669							2							Receptacle			Female Socket						Latch Lock					Free Hanging (In-Line)		4.2 mm	0.165 in	4.2 mm	0.165 in	Black	Crimp	Contacts Not Included							16
Molex 0050362426	Shrouded - 4 Wall	2.54 µm	100 µin	3.6 mm	0.142 in	Square	2	All	Tin	4.2 mm	0.165 in	UL94 V-0		Header	2.54 çm	100 çin	Male Pin	4.2 mm	0.165 in			Board to Cable/Wire	Locking Ramp	Solder	Black	General Purpose Industrial Telecommunications		Through Hole Right Angle	Brass														16
Molex 0050361816	Shrouded - 4 Wall	2.54 µm	100 µin	3.6 mm	0.142 in	Square	2	All	Tin	4.2 mm	0.165 in	UL94 V-0	Polyamide (PA66) Nylon 6/6	Header	0.76 Ám	30 Áin	Male Pin	4.2 mm	0.165 in			Board to Cable/Wire	Locking Ramp	Solder	Natural	General Purpose Industrial Telecommunications	14	Through Hole Right Angle	Brass															Gold
Molex 0050361689							1							Receptacle			Male or Female						Latch Lock					Free Hanging (In-Line)				6.71 mm	0.264 in	Black	Crimp	Contacts Not Included
