AM12TW-2403SZ

Active

aimtec

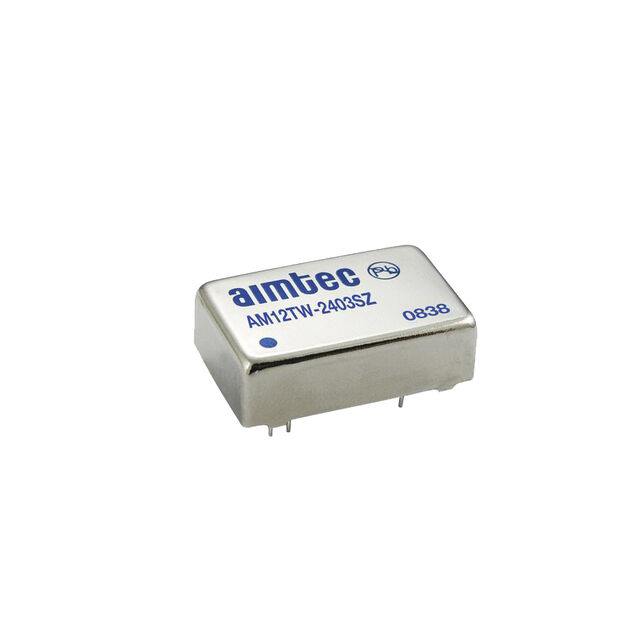

DC DC CONVERTER 3.3V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM12TW-2403SZ

Active

aimtec

DC DC CONVERTER 3.3V 12W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM12TW-2403SZ

Applications	ITE (Commercial)
Approval Agency	UL, CE
Current - Output (Max) [Max]	3.5 A
Efficiency	87 %
Features	Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module
Power (Watts)	12 W
Size / Dimension [x]	1.25 "
Size / Dimension [x]	31.8 mm
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	10.7 mm
Size / Dimension [z]	0.42 in
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	3.3 V

AM12T Series

Part	Features	Approval Agency	Power (Watts)	Voltage - Output 1	Mounting Type	Voltage - Input (Max) [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Type	Current - Output (Max) [Max]	Number of Outputs	Voltage - Isolation	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Supplier Device Package	Package / Case
aimtec AM12TW-2403SZ	Remote On/Off	CE UL	12 W	3.3 V	Through Hole	36 V	87 %	10.7 mm	1.25 "	0.8 in	20.3 mm	31.8 mm	0.42 in	ITE (Commercial)	Isolated Module	3.5 A	1	1.6 kV	24-DIP Module	85 °C	-40 °C	9 V
aimtec AM12T-1203SZ	Remote On/Off	CE	12 W	3.3 V	Through Hole	18 V	87 %		1.25 "	0.8 in		31.8 mm	0.4 "	ITE (Commercial)	Isolated Module	3.5 A	1	1.6 kV	24-DIP Module	85 °C	-40 °C	9 V	10.2 mm	20.3 mm
aimtec AM12TW-4805SZ	Remote On/Off	CE UL	12 W	5.1 V	Through Hole	75 V	89 %	10.7 mm	1.25 "	0.8 in	20.3 mm	31.8 mm	0.42 in	ITE (Commercial)	Isolated Module	2.4 A	1	1.6 kV	24-DIP Module	85 °C	-40 °C	18 V
aimtec AM12TW-2405SZ		CE	12 W	5.1 V	Through Hole	36 V	89 %	10.7 mm	1.25 "	0.8 in	20.3 mm	31.8 mm	0.42 in	ITE (Commercial)	Isolated Module	2.4 A	1	1.6 kV	24-DIP Module 8 Leads	85 °C	-40 °C	9 V
aimtec AM12T-4805SZ	Remote On/Off	CE	12 W	5 V	Through Hole	75 V	89 %		1.25 "	0.8 in		31.8 mm	0.4 "	ITE (Commercial)	Isolated Module	2.4 A	1	1.6 kV	24-DIP Module	85 °C	-40 °C	36 V	10.2 mm	20.3 mm
aimtec AM12T-1205SZ	Remote On/Off	CE	12 W	5 V	Through Hole	18 V	89 %		1.25 "	0.8 in		31.8 mm	0.4 "	ITE (Commercial)	Isolated Module	2.4 A	1	1.6 kV	23-DIP Module	85 °C	-40 °C	9 V	10.2 mm	20.3 mm	24-DIP	8 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 33.37
		5	$ 33.12
		10	$ 32.86
		20	$ 32.35
		40	$ 30.81
		80	$ 28.24
		160	$ 27.96
		320	$ 27.68

Description

General part information

AM12T Series

Isolated Module DC DC Converter 1 Output 3.3V 3.5A 9V - 36V Input
