AM12T-1205SZ

Active

aimtec

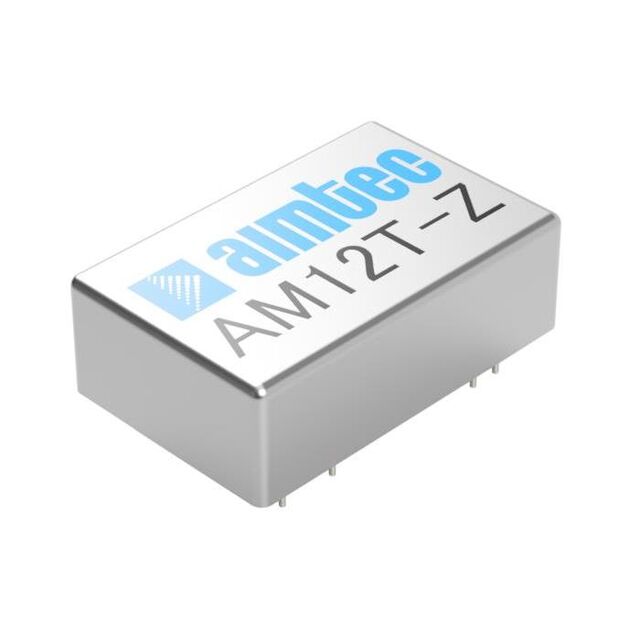

DC DC CONVERTER 5V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM12T-1205SZ

Active

aimtec

DC DC CONVERTER 5V 12W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM12T-1205SZ

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	2.4 A
Efficiency	89 %
Features	Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	23-DIP Module
Package / Case	8 Leads
Power (Watts)	12 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Supplier Device Package	24-DIP
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	5 V

AM12T Series

Part	Features	Approval Agency	Power (Watts)	Voltage - Output 1	Mounting Type	Voltage - Input (Max) [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Type	Current - Output (Max) [Max]	Number of Outputs	Voltage - Isolation	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Supplier Device Package	Package / Case
aimtec AM12TW-2403SZ	Remote On/Off	CE UL	12 W	3.3 V	Through Hole	36 V	87 %	10.7 mm	1.25 "	0.8 in	20.3 mm	31.8 mm	0.42 in	ITE (Commercial)	Isolated Module	3.5 A	1	1.6 kV	24-DIP Module	85 °C	-40 °C	9 V
aimtec AM12T-1203SZ	Remote On/Off	CE	12 W	3.3 V	Through Hole	18 V	87 %		1.25 "	0.8 in		31.8 mm	0.4 "	ITE (Commercial)	Isolated Module	3.5 A	1	1.6 kV	24-DIP Module	85 °C	-40 °C	9 V	10.2 mm	20.3 mm
aimtec AM12TW-4805SZ	Remote On/Off	CE UL	12 W	5.1 V	Through Hole	75 V	89 %	10.7 mm	1.25 "	0.8 in	20.3 mm	31.8 mm	0.42 in	ITE (Commercial)	Isolated Module	2.4 A	1	1.6 kV	24-DIP Module	85 °C	-40 °C	18 V
aimtec AM12TW-2405SZ		CE	12 W	5.1 V	Through Hole	36 V	89 %	10.7 mm	1.25 "	0.8 in	20.3 mm	31.8 mm	0.42 in	ITE (Commercial)	Isolated Module	2.4 A	1	1.6 kV	24-DIP Module 8 Leads	85 °C	-40 °C	9 V
aimtec AM12T-4805SZ	Remote On/Off	CE	12 W	5 V	Through Hole	75 V	89 %		1.25 "	0.8 in		31.8 mm	0.4 "	ITE (Commercial)	Isolated Module	2.4 A	1	1.6 kV	24-DIP Module	85 °C	-40 °C	36 V	10.2 mm	20.3 mm
aimtec AM12T-1205SZ	Remote On/Off	CE	12 W	5 V	Through Hole	18 V	89 %		1.25 "	0.8 in		31.8 mm	0.4 "	ITE (Commercial)	Isolated Module	2.4 A	1	1.6 kV	23-DIP Module	85 °C	-40 °C	9 V	10.2 mm	20.3 mm	24-DIP	8 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 25.00
		5	$ 23.57
		10	$ 22.98
		25	$ 22.22
		50	$ 21.66
		100	$ 21.12
		250	$ 20.42
		500	$ 19.91

Description

General part information

AM12T Series

Isolated Module DC DC Converter 1 Output 5V 2.4A 9V - 18V Input
