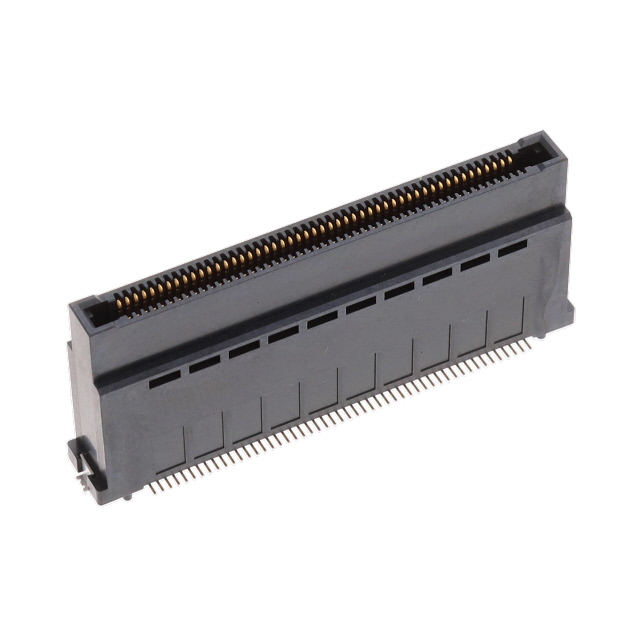

AX01R100VANBR200
ActiveJAE Electronics
RIGID SIDE B2B CONNECTOR, 100 PO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AX01R100VANBR200 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Board Guide |
| Height Above Board | 16.64 mm |
| Height Above Board | 0.655 in |
| Mounting Type | Surface Mount |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.79 | |
| 10 | $ 5.24 | |||
| 25 | $ 4.95 | |||
| 50 | $ 4.82 | |||
| 100 | $ 4.58 | |||
| Digi-Reel® | 1 | $ 5.79 | ||
| 10 | $ 5.24 | |||
| 25 | $ 4.95 | |||
| 50 | $ 4.82 | |||
| 100 | $ 4.58 | |||
| Tape & Reel (TR) | 200 | $ 4.58 | ||
| 400 | $ 4.25 | |||
Description
General part information
AX01R100 Series
100 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
