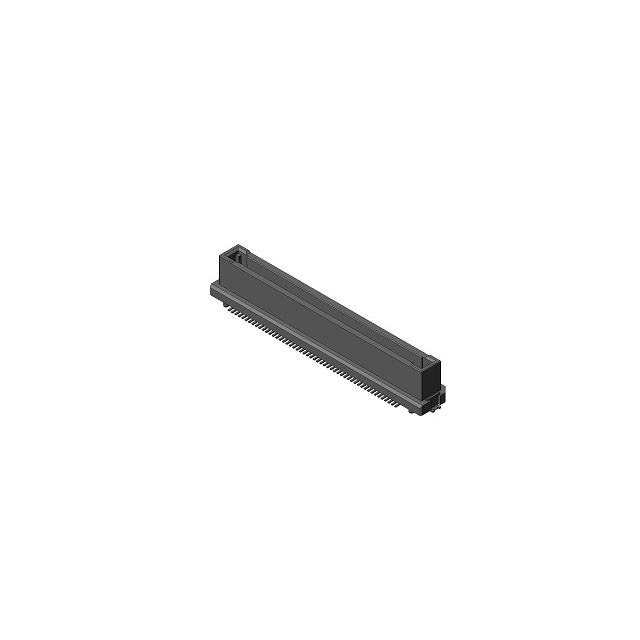

AX01R100VABBR600
ActiveJAE Electronics
RIGID SIDE B2B CONNECTOR, 100 PO
Deep-Dive with AI
Search across all available documentation for this part.
AX01R100VABBR600
ActiveJAE Electronics
RIGID SIDE B2B CONNECTOR, 100 PO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AX01R100VABBR600 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention, Board Guide |
| Height Above Board | 6.6 mm |
| Height Above Board | 0.26 " |
| Mounting Type | Surface Mount |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.78 | |
| 10 | $ 7.03 | |||
| 25 | $ 6.64 | |||
| 50 | $ 6.48 | |||
| 100 | $ 6.16 | |||
| 250 | $ 5.51 | |||
| Digi-Reel® | 1 | $ 9.08 | ||
| 10 | $ 6.96 | |||
| 25 | $ 6.29 | |||
| 50 | $ 5.83 | |||
| 100 | $ 5.41 | |||
| 250 | $ 4.92 | |||
| Tape & Reel (TR) | 600 | $ 4.01 | ||
Description
General part information
AX01R100 Series
100 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Documents
Technical documentation and resources
No documents available
