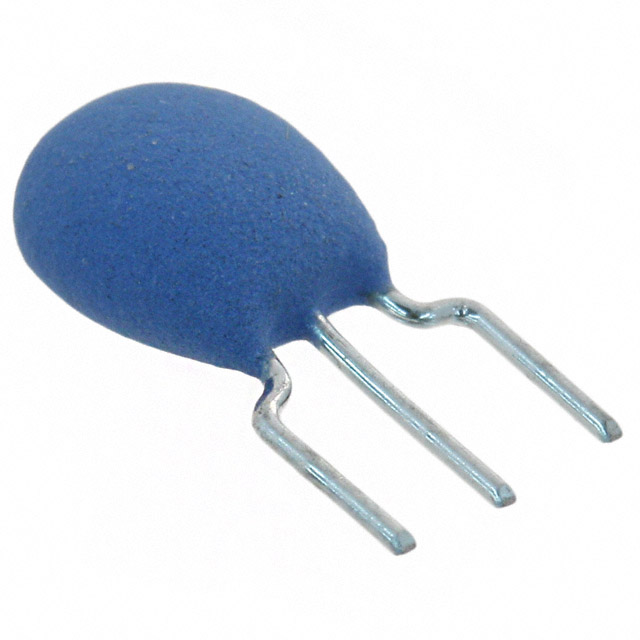

CSTLS20M0X53Z-B0

Active

Murata Power Solutions Inc.

CERAMIC RES 20.0000MHZ 15PF T/H

Deep-Dive with AI

Search across all available documentation for this part.

CSTLS20M0X53Z-B0

Active

Murata Power Solutions Inc.

CERAMIC RES 20.0000MHZ 15PF T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CSTLS20M0X53Z-B0

Capacitance	15 pF
Features	Built in Capacitor
Frequency	20 MHz
Frequency Tolerance	0.5 %
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial - 3 Lead
Package / Case [custom]	2.5 mm
Size / Dimension [x]	5.5 mm
Size / Dimension [x]	0.217 "
Size / Dimension [y]	0.138 in
Size / Dimension [y]	3.5 mm
Type	Ceramic

CSTLS Series

Part	Mounting Type	Frequency	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Features	Height [z]	Height [z]	Package / Case	Package / Case [custom]	Type	Frequency Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Impedance	Frequency Stability [Max]	Frequency Stability [Min]
Murata Power Solutions Inc. CSTLS3M58G53-A0	Through Hole	3.58 MHz	15 pF	-20 C	80 C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	8 mm	3 mm	0.315 "	0.118 in	50 Ohms
Murata Power Solutions Inc. CSTLS6M00G53-A0	Through Hole	6 MHz	15 pF	-20 C	80 C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	8 mm	3 mm	0.315 "	0.118 in	30 Ohms
Murata Power Solutions Inc. CSTLS16M9X55-A0	Through Hole	16.934 MHz	30 pF	-20 C	80 C	Built in Capacitor			Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	5.5 mm	3.5 mm	0.217 "	0.138 in	50 Ohms
Murata Power Solutions Inc. CSTLS3M54G56-B0	Through Hole						6 mm	0.236 "	Radial - 3 Lead	2.5 mm			8 mm	3 mm	0.315 "	0.118 in
Murata Power Solutions Inc. CSTLS4M00G53-B0	Through Hole	4 MHz	15 pF	-20 C	80 C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	8 mm	3 mm	0.315 "	0.118 in	30 Ohms
Murata Power Solutions Inc. CSTLS4M09G56-A0	Through Hole	4.096 MHz	47 pF	-20 C	80 C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	8 mm	3 mm	0.315 "	0.118 in	30 Ohms	20 %	-40 %
Murata Power Solutions Inc. CSTLS20M0X53Z-B0	Through Hole	20 MHz	15 pF	-40 °C	125 °C	Built in Capacitor			Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	5.5 mm	3.5 mm	0.217 "	0.138 in
Murata Power Solutions Inc. CSTLS4M00G56-A0	Through Hole	4 MHz	47 pF	-20 C	80 C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	8 mm	3 mm	0.315 "	0.118 in	30 Ohms
Murata Power Solutions Inc. CSTLS8M00G53Z-A0	Through Hole	8 MHz	15 pF	-40 °C	125 °C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	8 mm	3 mm	0.315 "	0.118 in	25 Ohms
Murata Power Solutions Inc. CSTLS5M12G53-B0	Through Hole	5.12 MHz	15 pF	-20 C	80 C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	5 %	8 mm	3 mm	0.315 "	0.118 in	30 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.29
		10	$ 0.24
		50	$ 0.22
		100	$ 0.19
		500	$ 0.18
		1000	$ 0.17

Description

General part information

CSTLS Series

20 MHz Ceramic Resonator Built in Capacitor 15 pF ±0.2% -40°C ~ 125°C Through Hole

Documents

Technical documentation and resources

No documents available
