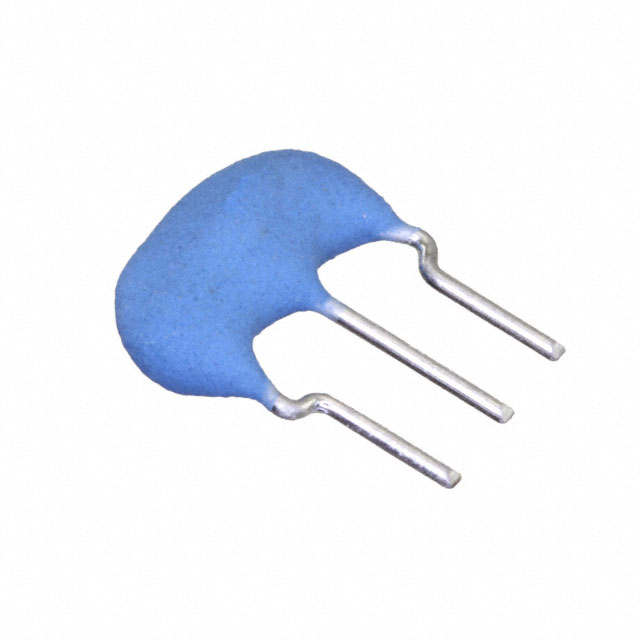

CSTLS4M09G56-A0

Active

Murata Power Solutions Inc.

CER RESONATOR

Deep-Dive with AI

Search across all available documentation for this part.

CSTLS4M09G56-A0

Active

Murata Power Solutions Inc.

CER RESONATOR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CSTLS4M09G56-A0

Capacitance	47 pF
Features	Built in Capacitor
Frequency	4.096 MHz
Frequency Stability [Max]	20 %
Frequency Stability [Min]	-40 %
Frequency Tolerance	0.5 %
Height [z]	6 mm
Height [z]	0.236 "
Impedance	30 Ohms
Mounting Type	Through Hole
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Package / Case	Radial - 3 Lead
Package / Case [custom]	2.5 mm
Size / Dimension [x]	8 mm
Size / Dimension [x]	0.315 "
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Type	Ceramic

CSTLS Series

Part	Mounting Type	Frequency	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Features	Height [z]	Height [z]	Package / Case	Package / Case [custom]	Type	Frequency Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Impedance	Frequency Stability [Max]	Frequency Stability [Min]
Murata Power Solutions Inc. CSTLS3M58G53-A0	Through Hole	3.58 MHz	15 pF	-20 C	80 C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	8 mm	3 mm	0.315 "	0.118 in	50 Ohms
Murata Power Solutions Inc. CSTLS6M00G53-A0	Through Hole	6 MHz	15 pF	-20 C	80 C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	8 mm	3 mm	0.315 "	0.118 in	30 Ohms
Murata Power Solutions Inc. CSTLS16M9X55-A0	Through Hole	16.934 MHz	30 pF	-20 C	80 C	Built in Capacitor			Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	5.5 mm	3.5 mm	0.217 "	0.138 in	50 Ohms
Murata Power Solutions Inc. CSTLS3M54G56-B0	Through Hole						6 mm	0.236 "	Radial - 3 Lead	2.5 mm			8 mm	3 mm	0.315 "	0.118 in
Murata Power Solutions Inc. CSTLS4M00G53-B0	Through Hole	4 MHz	15 pF	-20 C	80 C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	8 mm	3 mm	0.315 "	0.118 in	30 Ohms
Murata Power Solutions Inc. CSTLS4M09G56-A0	Through Hole	4.096 MHz	47 pF	-20 C	80 C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	8 mm	3 mm	0.315 "	0.118 in	30 Ohms	20 %	-40 %
Murata Power Solutions Inc. CSTLS20M0X53Z-B0	Through Hole	20 MHz	15 pF	-40 °C	125 °C	Built in Capacitor			Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	5.5 mm	3.5 mm	0.217 "	0.138 in
Murata Power Solutions Inc. CSTLS4M00G56-A0	Through Hole	4 MHz	47 pF	-20 C	80 C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	8 mm	3 mm	0.315 "	0.118 in	30 Ohms
Murata Power Solutions Inc. CSTLS8M00G53Z-A0	Through Hole	8 MHz	15 pF	-40 °C	125 °C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	0.5 %	8 mm	3 mm	0.315 "	0.118 in	25 Ohms
Murata Power Solutions Inc. CSTLS5M12G53-B0	Through Hole	5.12 MHz	15 pF	-20 C	80 C	Built in Capacitor	6 mm	0.236 "	Radial - 3 Lead	2.5 mm	Ceramic	5 %	8 mm	3 mm	0.315 "	0.118 in	30 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.19
		10	$ 0.16
		50	$ 0.14
		100	$ 0.13
		500	$ 0.12
		1000	$ 0.10
	Tape & Box (TB)	2000	$ 0.07

Description

General part information

CSTLS Series

4.096 MHz Ceramic Resonator Built in Capacitor 47 pF -0.4, +0.2% 30 Ohms -20°C ~ 80°C Through Hole
