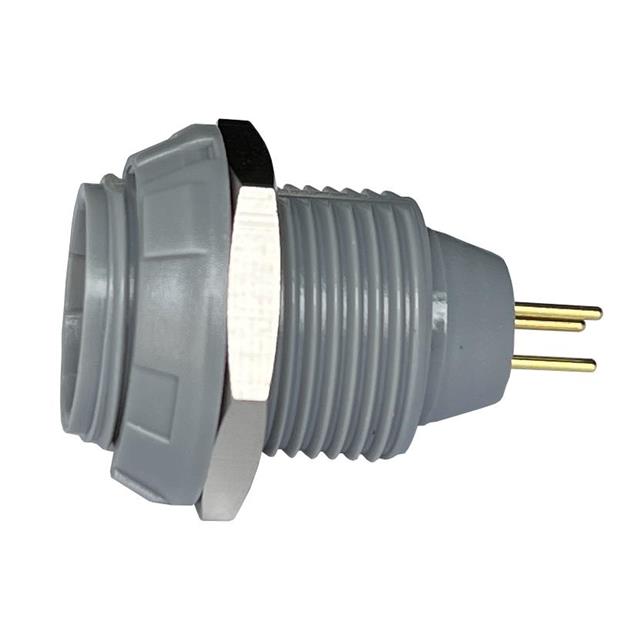

MMI-P1SRG03PGG

Active

Adam Tech

CONN RCPT FMALE 3POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MMI-P1SRG03PGG

Active

Adam Tech

CONN RCPT FMALE 3POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMI-P1SRG03PGG

Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	12 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	118 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Plastic
Shell Material	Polycarbonate (PC)
Shielding	Unshielded
Termination	Solder
Voltage Rating	300 VDC

MMI-P1SR Series

Part	Insert Material	Shielding	Number of Positions	Fastening Type	Shell Material	Connector Type	Primary Material	Contact Finish - Mating	Orientation	Voltage Rating	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Color	Ingress Protection	Mounting Feature	Termination	Mounting Type
Adam Tech MMI-P1SRG06SGG	Polyphenylene Sulfide (PPS)	Unshielded	6	Push-Pull	Polycarbonate (PC)	Receptacle Female Sockets	Plastic	Gold	G	200 V	Brass	8 A	-55 °C	118 °C	Gray	IP50	Bulkhead - Rear Side Nut
Adam Tech MMI-P1SRG10SGG	Polyphenylene Sulfide (PPS)	Unshielded	10	Push-Pull	Polycarbonate (PC)	Receptacle Female Sockets	Plastic	Gold	G	200 V	Brass	4 A	-55 °C	118 °C	Gray	IP50	Bulkhead - Rear Side Nut
Adam Tech MMI-P1SRG03PGG	Polyphenylene Sulfide (PPS)	Unshielded		Push-Pull	Polycarbonate (PC)	Receptacle Female Sockets	Plastic	Gold	G	300 VDC	Brass	12 A	-55 °C	118 °C	Gray	IP50	Bulkhead - Rear Side Nut	Solder	Panel Mount Through Hole
Adam Tech MMI-P1SRG02PGG	Polyphenylene Sulfide (PPS)	Unshielded	2	Push-Pull	Polycarbonate (PC)	Receptacle Female Sockets	Plastic	Gold	G	300 VDC	Brass	20 A	-55 °C	118 °C	Gray	IP50	Bulkhead - Rear Side Nut	Solder	Panel Mount Through Hole
Adam Tech MMI-P1SRG08PGG	Polyphenylene Sulfide (PPS)	Unshielded	8	Push-Pull	Polycarbonate (PC)	Receptacle Female Sockets	Plastic	Gold	G	200 V	Brass	6 A	-55 °C	118 °C	Gray	IP50	Bulkhead - Rear Side Nut	Solder	Panel Mount Through Hole
Adam Tech MMI-P1SRG05SGG	Polyphenylene Sulfide (PPS)	Unshielded		Push-Pull	Polycarbonate (PC)	Receptacle Female Sockets	Plastic	Gold	G	250 VDC	Brass	9 A	-55 °C	118 °C	Gray	IP50	Bulkhead - Rear Side Nut
Adam Tech MMI-P1SRG03PRGG	Polyphenylene Sulfide (PPS)	Unshielded		Push-Pull	Polycarbonate (PC)	Receptacle Female Sockets	Plastic	Gold	G	300 VDC	Brass	12 A	-55 °C	118 °C	Gray	IP50	Bulkhead - Rear Side Nut	Solder	Panel Mount Right Angle Through Hole
Adam Tech MMI-P1SRG08SGG	Polyphenylene Sulfide (PPS)	Unshielded	8	Push-Pull	Polycarbonate (PC)	Receptacle Female Sockets	Plastic	Gold	G	200 V	Brass	6 A	-55 °C	118 °C	Gray	IP50	Bulkhead - Rear Side Nut
Adam Tech MMI-P1SRG02PRGG	Polyphenylene Sulfide (PPS)	Unshielded	2	Push-Pull	Polycarbonate (PC)	Receptacle Female Sockets	Plastic	Gold	G	300 VDC	Brass	20 A	-55 °C	118 °C	Gray	IP50	Bulkhead - Rear Side Nut	Solder	Panel Mount Right Angle Through Hole
Adam Tech MMI-P1SRG03SGG	Polyphenylene Sulfide (PPS)	Unshielded		Push-Pull	Polycarbonate (PC)	Receptacle Female Sockets	Plastic	Gold	G	300 VDC	Brass	12 A	-55 °C	118 °C	Gray	IP50	Bulkhead - Rear Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.04
		20	$ 5.70
		40	$ 5.28
		60	$ 5.05
		100	$ 4.79
		260	$ 4.33
		500	$ 4.06
		1000	$ 3.79
		2500	$ 3.50

Description

General part information

MMI-P1SR Series

3 Position Circular Connector Receptacle, Female Sockets Solder
