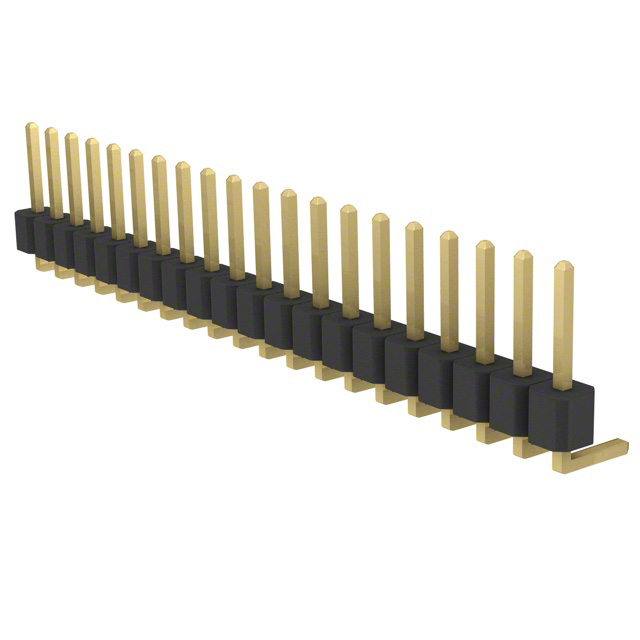

PRPC020SBAN-M71RC

Active

Sullins Connector Solutions

BOARD CONNECTOR, 20 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRPC020SBAN-M71RC

Active

Sullins Connector Solutions

BOARD CONNECTOR, 20 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC020SBAN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC020 Series

Part	Shrouding	Contact Finish Thickness - Mating	Style	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions Loaded	Contact Shape	Insulation Color	Number of Rows	Contact Finish - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Type	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating	Termination	Fastening Type	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]
Sullins Connector Solutions PRPC020DBBN-M71RC	Unshrouded	Flash	Board to Board Cable	0.197 in	5 mm	0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	2	Gold	Flash	2.54 mm	0.1 in	Through Hole Right Angle	Male Pin	3 A	0.22 in	5.58 mm	Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	40
Sullins Connector Solutions PRPC020SBAN-M71RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	1	Gold	Flash			Through Hole Right Angle	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	20	0.098 in	2.5 mm	0.12 in	3.05 mm
Sullins Connector Solutions PRPC020DAAN-RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	2	Gold	Flash	2.54 mm	0.1 in	Through Hole	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	40	0.098 in	2.5 mm	0.12 in	3.05 mm	0.448 in	11.39 mm
Sullins Connector Solutions PRPC020SFAN-RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	1	Gold	Flash			Through Hole	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.318 "		Solder	Push-Pull	20	0.098 in	2.5 mm	0.12 in	3.05 mm		0.537 "	13.63 mm	8.08 mm
Sullins Connector Solutions PRPC020SBBN-M71RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	1	Gold	Flash			Through Hole Right Angle	Male Pin	3 A	0.22 in	5.58 mm	Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	20	0.098 in	2.5 mm
Sullins Connector Solutions PRPC020DFAN-RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	2	Gold	Flash	2.54 mm	0.1 in	Through Hole	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.318 "		Solder	Push-Pull	40	0.098 in	2.5 mm	0.12 in	3.05 mm		0.537 "	13.63 mm	8.08 mm
Sullins Connector Solutions PRPC020SBCN-M71RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	1	Gold	Flash			Through Hole Right Angle	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	20	0.098 in	2.5 mm	0.32 in	8.13 mm
Sullins Connector Solutions PRPC020SADN-RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	1	Gold	Flash			Through Hole	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	20	0.098 in	2.5 mm	0.42 in	10.67 mm	0.748 in	19.01 mm
Sullins Connector Solutions PRPC020SAAN-RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	1	Gold	Flash			Through Hole	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	20	0.098 in	2.5 mm	0.12 in	3.05 mm	0.448 in	11.39 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.92
		10	$ 0.70
		100	$ 0.54
		500	$ 0.45
		1000	$ 0.42
		5000	$ 0.36

Description

General part information

PRPC020 Series

Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
