PRPC020DBBN-M71RC

Unknown

Sullins Connector Solutions

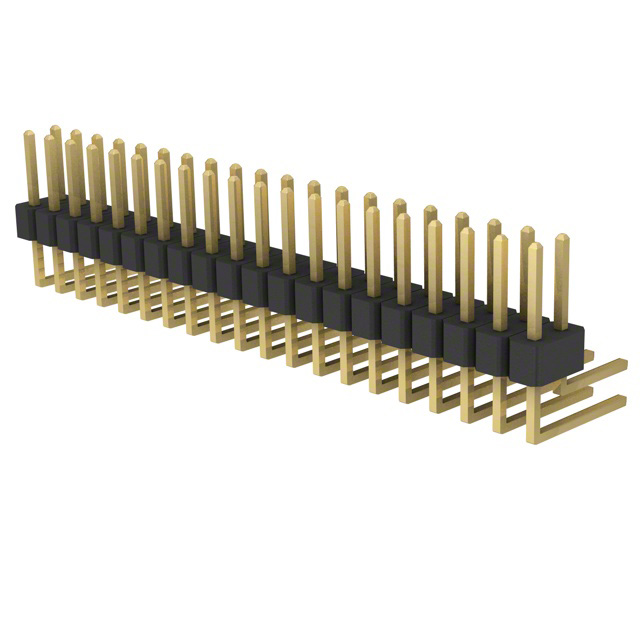

CONN HEADER R/A 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PRPC020DBBN-M71RC

Unknown

Sullins Connector Solutions

CONN HEADER R/A 40POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC020DBBN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC020 Series

Part	Shrouding	Contact Finish Thickness - Mating	Style	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions Loaded	Contact Shape	Insulation Color	Number of Rows	Contact Finish - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Type	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating	Termination	Fastening Type	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]
Sullins Connector Solutions PRPC020DBBN-M71RC	Unshrouded	Flash	Board to Board Cable	0.197 in	5 mm	0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	2	Gold	Flash	2.54 mm	0.1 in	Through Hole Right Angle	Male Pin	3 A	0.22 in	5.58 mm	Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	40
Sullins Connector Solutions PRPC020SBAN-M71RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	1	Gold	Flash			Through Hole Right Angle	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	20	0.098 in	2.5 mm	0.12 in	3.05 mm
Sullins Connector Solutions PRPC020DAAN-RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	2	Gold	Flash	2.54 mm	0.1 in	Through Hole	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	40	0.098 in	2.5 mm	0.12 in	3.05 mm	0.448 in	11.39 mm
Sullins Connector Solutions PRPC020SFAN-RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	1	Gold	Flash			Through Hole	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.318 "		Solder	Push-Pull	20	0.098 in	2.5 mm	0.12 in	3.05 mm		0.537 "	13.63 mm	8.08 mm
Sullins Connector Solutions PRPC020SBBN-M71RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	1	Gold	Flash			Through Hole Right Angle	Male Pin	3 A	0.22 in	5.58 mm	Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	20	0.098 in	2.5 mm
Sullins Connector Solutions PRPC020DFAN-RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	2	Gold	Flash	2.54 mm	0.1 in	Through Hole	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.318 "		Solder	Push-Pull	40	0.098 in	2.5 mm	0.12 in	3.05 mm		0.537 "	13.63 mm	8.08 mm
Sullins Connector Solutions PRPC020SBCN-M71RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	1	Gold	Flash			Through Hole Right Angle	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	20	0.098 in	2.5 mm	0.32 in	8.13 mm
Sullins Connector Solutions PRPC020SADN-RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	1	Gold	Flash			Through Hole	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	20	0.098 in	2.5 mm	0.42 in	10.67 mm	0.748 in	19.01 mm
Sullins Connector Solutions PRPC020SAAN-RC	Unshrouded	Flash	Board to Board Cable			0.1 in	2.54 mm	Brass	UL94 V-0	-40 °C	105 ░C	Breakaway Header	All	Square	Black	1	Gold	Flash			Through Hole	Male Pin	3 A			Polybutylene Terephthalate (PBT)	Gold	0.23 in	5.84 mm	Solder	Push-Pull	20	0.098 in	2.5 mm	0.12 in	3.05 mm	0.448 in	11.39 mm
