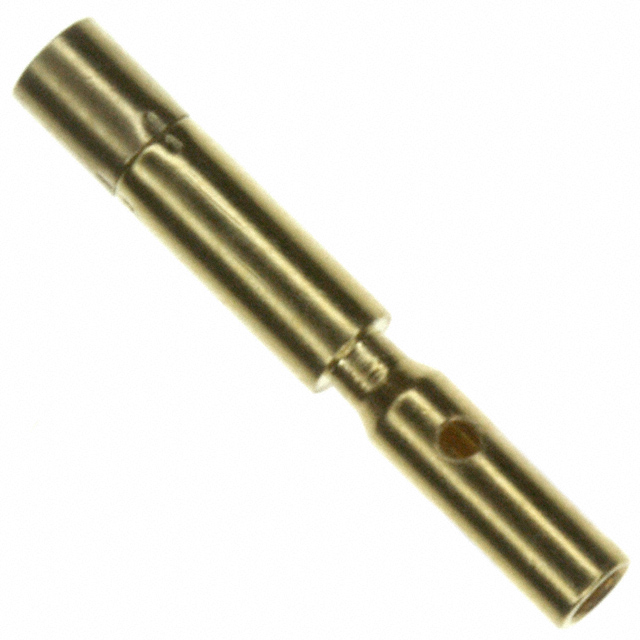

SC000013

Active

Amphenol Sine Systems Corp

CONTACT SOCKET 18-22AWG CRIMP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONTACT SOCKET 18-22AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Material	Contact Termination	Contact Size	Type	Contact Finish	Termination Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness
Amphenol Sine Systems Corp SC000013	18 AWG	22 AWG	Copper Alloy	Crimp	1 mm	Machined Signal	Gold	Copper Alloy	Socket
Amphenol Sine Systems Corp SC000040	14 AWG	18 AWG	Copper Alloy	Crimp	2 mm	Machined Signal	Gold	Copper Alloy	Pin
Amphenol Sine Systems Corp SC000045	14 AWG	18 AWG	Copper Alloy	Crimp	2 mm	Power Machined	Gold	Copper Alloy	Socket	10 Áin	0.25 Ám
Amphenol Sine Systems Corp SC000041	8 AWG	12 AWG	Copper Alloy	Crimp	3.6 mm	Machined Signal	Gold	Copper Alloy	Pin
Amphenol Sine Systems Corp SC000036	14 AWG	18 AWG	Copper Alloy	Crimp	2 mm	Power Machined	Gold	Copper Alloy	Pin	10 Áin	0.25 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Socket Contact 18-22 AWG Size 1.0mm Crimp Gold
