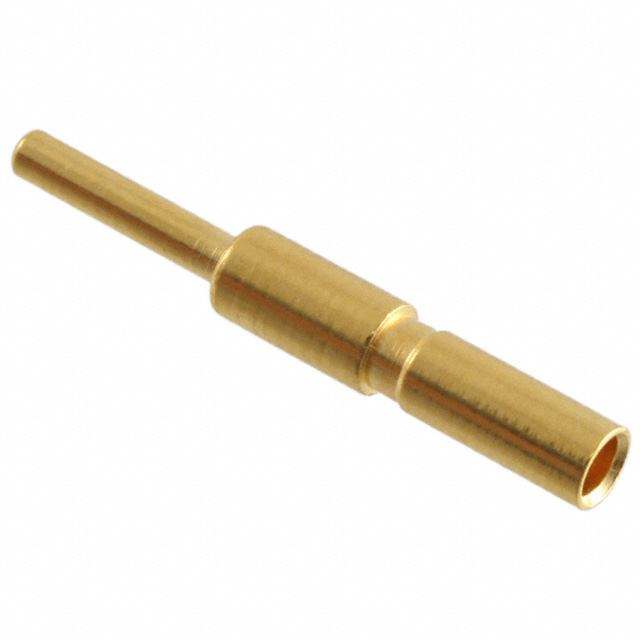

SC000036
ActiveAmphenol Sine Systems Corp
CONTACT PIN 14-18AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
SC000036
ActiveAmphenol Sine Systems Corp
CONTACT PIN 14-18AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC000036 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Size | 2 mm |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Termination Finish | Copper Alloy |
| Type | Power, Machined |
| Wire Gauge or Range - AWG [Max] | 18 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.96 | |
| 10 | $ 0.83 | |||
| 25 | $ 0.80 | |||
| 50 | $ 0.78 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.63 | |||
Description
General part information
SC0000 Series
Pin Contact 14-18 AWG Size 2.0mm Crimp Gold
