PML50SRFVW

Active

Visual Communications Company - VCC

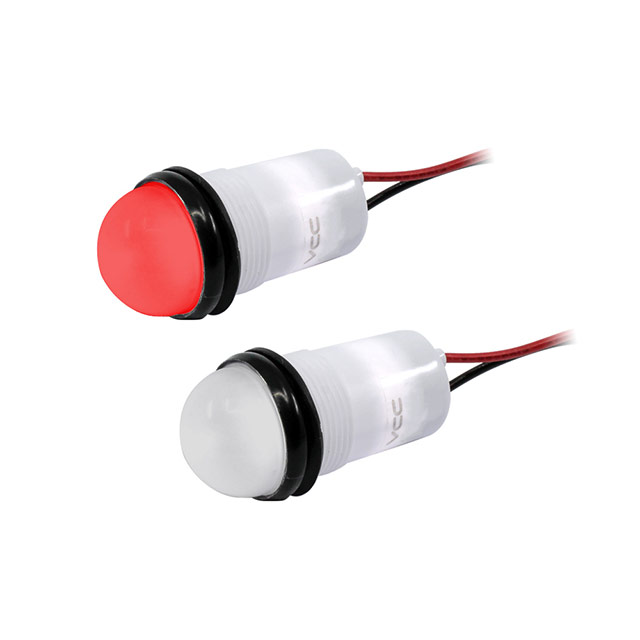

.688" DIA (17.5MM) RED LED PANEL

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

.688" DIA (17.5MM) RED LED PANEL

Technical Specifications

Parameters and characteristics for this part

Part	Lamp Color	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings	Lens Transparency	Termination Style	Ingress Protection	Voltage [Min]	Voltage [Max]	Lens Color	Lens Size [diameter]	Lens Style	Panel Cutout Shape	Millicandela Rating
Visual Communications Company - VCC PML50SRFVW	Red	LED	17.53 mm	0.69 in	DC	Clear	Wire Leads - 5.5" (139.70mm)	IP67	5 V	28 V	Red	17.8 mm	Round with Domed Top	Round	780 mcd
Visual Communications Company - VCC PML50YFVW	Yellow	LED	17.53 mm	0.69 in	DC	Clear	Wire Leads - 5.5" (139.70mm)	IP67	5 V	28 V	Yellow	17.8 mm		Round	2020 mcd
Visual Communications Company - VCC PML50BFVW	Blue	LED	17.53 mm	0.69 in	DC	Clear	Wire Leads - 5.5" (139.70mm)	IP67	5 V	28 V	Blue	17.8 mm		Round	270 mcd
Visual Communications Company - VCC PML50WFVW	White	LED	17.53 mm	0.69 in	DC	Clear	Wire Leads - 5.5" (139.70mm)	IP67	5 V	28 V	White	17.8 mm		Round
Visual Communications Company - VCC PML50SYFVW	Yellow	LED	17.53 mm	0.69 in	DC	Clear	Wire Leads - 5.5" (139.70mm)	IP67	5 V	28 V	Yellow	17.8 mm	Round with Domed Top	Round	970 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Clear 5V ~ 28V 20mA Wire Leads - 5.5" (139.70mm)
