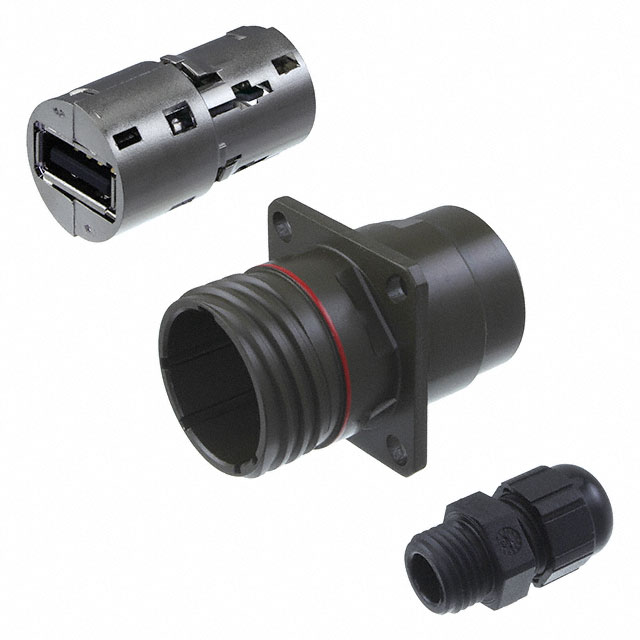

USBFTV2PE2G
ActiveAmphenol Socapex
CONN RCP USB2.0 TYPEA 4P PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsUSBF TV Series
USBFTV2PE2G
ActiveAmphenol Socapex
CONN RCP USB2.0 TYPEA 4P PNL MNT
Deep-Dive with AI
DocumentsUSBF TV Series
Technical Specifications
Parameters and characteristics for this part
| Specification | USBFTV2PE2G |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Features | Circular Threaded Coupling, Backshell |
| Gender | Receptacle |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Aluminum |
| Specifications | USB 2.0 |
| Termination | Solder |
USBFTV2 Series
| Part | Shielding | Wire Gauge | Features | Configuration | Specifications | Length [x] | Length [x] | Transfer Rate | Mounting Type | Convert From (Adapter End) | Convert To (Adapter End) | Termination | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Ingress Protection | Mating Cycles | Shell/Shielding Material | Number of Ports | Connector Type | Number of Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Socapex | Shielded | 24 AWG 28 AWG | Data Transfer and Charge Industrial Environments - IP68 Panel Mount | A Female to A Male (Circular Coupling) | USB 2.0 | 0.98 ft | 300 mm | 480 Mbps | ||||||||||||||
Amphenol Socapex | Panel Mount Screw Hole | USB-A (USB TYPE-A) Receptacle | Receptacle USB-A (USB TYPE-A) | |||||||||||||||||||
Amphenol Socapex | Backshell Circular Threaded Coupling | USB 2.0 | Solder | Flange | 85 °C | -40 °C | Receptacle | IP68 - Dust Tight Waterproof | 500 | Aluminum | 1 | USB-A (USB TYPE-A) | 4 | |||||||||
Amphenol Socapex | Shielded | 24 AWG 28 AWG | Data Transfer and Charge Industrial Environments - IP68 Panel Mount | A Female to Cable Round (Circular Coupling) | USB 2.0 | 3.28 ft | 1 m | 480 Mbps | ||||||||||||||
Amphenol Socapex | Backshell Circular Threaded Coupling | USB 2.0 | Solder | Flange | 85 °C | -40 °C | Receptacle | IP68 - Dust Tight Waterproof | 500 | Aluminum | 1 | USB-A (USB TYPE-A) | 4 | |||||||||
Amphenol Socapex | Shielded | 24 AWG 28 AWG | Data Transfer and Charge Industrial Environments - IP68 Panel Mount | A Female to A Male (Circular Coupling) | USB 2.0 | 3.28 ft | 1 m | 480 Mbps | ||||||||||||||
Amphenol Socapex | Circular Threaded Coupling | USB 2.0 | Solder | Flange | 85 °C | -40 °C | Receptacle | IP68 - Dust Tight Waterproof | 500 | Aluminum | 1 | USB-A (USB TYPE-A) | 4 | |||||||||
Amphenol Socapex | Circular Threaded Coupling | USB 2.0 | Solder | Flange | 85 °C | -40 °C | Receptacle | IP68 - Dust Tight Waterproof | 500 | Aluminum | 1 | USB-A (USB TYPE-A) | 4 | |||||||||
Amphenol Socapex | Shielded | 24 AWG 28 AWG | Data Transfer and Charge Industrial Environments - IP68 Panel Mount | A Female to A Male (Circular Coupling) | USB 2.0 | 0.98 ft | 300 mm | 480 Mbps | ||||||||||||||
Amphenol Socapex | Panel Mount Screw Hole | USB-A (USB TYPE-A) Receptacle | Receptacle USB-A (USB TYPE-A) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 126.80 | |
| 10 | $ 116.36 | |||
| 30 | $ 111.88 | |||
| 50 | $ 108.15 | |||
Description
General part information
USBFTV2 Series
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Panel Mount
