TG-AH486-320-320-5.0-1A

Obsolete

t-Global Technology

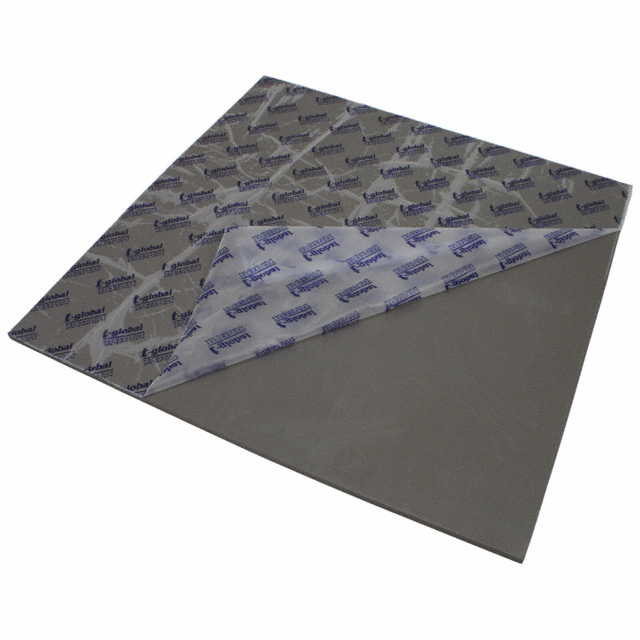

THERM PAD 320X320MM W/ADH GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsThermal Pad Tolerance Die-Cut Tolerence Guide +1

TG-AH486-320-320-5.0-1A

Obsolete

t-Global Technology

THERM PAD 320X320MM W/ADH GRAY

Deep-Dive with AI

DocumentsThermal Pad Tolerance Die-Cut Tolerence Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TG-AH486-320-320-5.0-1A

Adhesive	Adhesive - One Side
Color	Gray
Outline [x]	320 mm
Outline [y]	320 mm
Shape	Square
Shelf Life	12 Months
Shelf Life Start	Date of Purchase
Thermal Conductivity	3.2 W/m-K
Thickness	0.197 "
Thickness	5 mm
Type	Conductive Pad, Sheet

TG-AH486 Series

Part	Thermal Conductivity	Shape	Adhesive	Type	Thickness	Thickness	Shelf Life	Outline [x]	Outline [y]	Color	Shelf Life Start	Thickness [custom]	Thickness [custom]	Outline [diameter]
t-Global Technology TG-AH486-100-100-0.5-1A	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet	0.508 mm	0.02 in	12 Months	100 mm	100 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-100-100-5.0-1A	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet	5 mm	0.197 "	12 Months	100 mm	100 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-35-10-7.0-0	3.2 W/m-K	Rectangular		Conductive Pad Sheet			24 Months	35 mm	10 mm	Gray	Date of Purchase	0.276 in	7 mm
t-Global Technology TG-AH486-320-320-10.0-0	3.2 W/m-K	Square		Conductive Pad Sheet	10 mm	0.394 in	24 Months	320 mm	320 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-320-320-5.0-1A	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet	5 mm	0.197 "	12 Months	320 mm	320 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-150-150-3.0-1A	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet	3 mm	0.118 in	12 Months	150 mm	150 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-300-300-10.0-1A	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet	10 mm	0.394 in	12 Months	300 mm	300 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-45-25-4.0-1A	3.2 W/m-K	Rectangular	Adhesive - One Side	Conductive Pad Sheet	4 mm	0.157 in	12 Months	45 mm	25 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-DIA66-0.5-0	3.2 W/m-K	Round		Conductive Pad Sheet	0.5 mm	0.0197 in	24 Months			Gray	Date of Purchase			66 mm
t-Global Technology TG-AH486-30-30-1.5-1A	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet	1.5 mm	0.0591 "	12 Months	30 mm	30 mm	Gray	Date of Purchase

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$
