TG-AH486-320-320-10.0-0

Obsolete

t-Global Technology

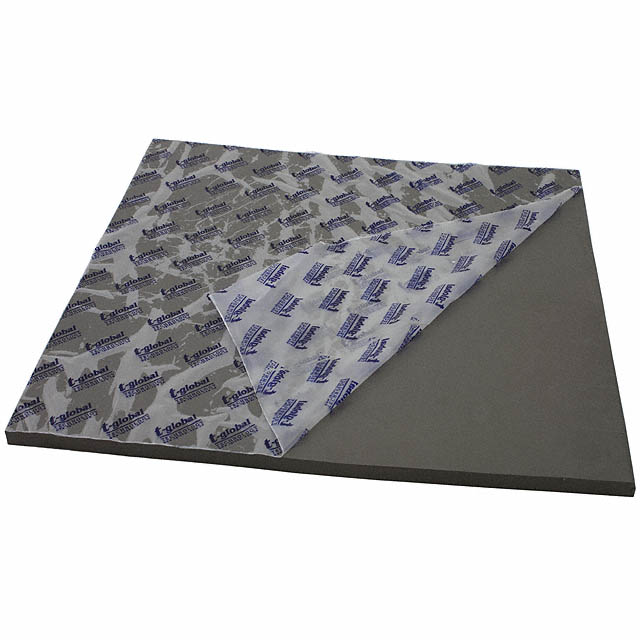

THERM PAD 320MMX320MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDie-Cut Tolerence Guide Datasheet +1

TG-AH486-320-320-10.0-0

Obsolete

t-Global Technology

THERM PAD 320MMX320MM GRAY

Deep-Dive with AI

DocumentsDie-Cut Tolerence Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TG-AH486-320-320-10.0-0

Color	Gray
Outline [x]	320 mm
Outline [y]	320 mm
Shape	Square
Shelf Life	24 Months
Shelf Life Start	Date of Purchase
Thermal Conductivity	3.2 W/m-K
Thickness	0.394 in
Thickness	10 mm
Type	Conductive Pad, Sheet

TG-AH486 Series

Part	Thermal Conductivity	Shape	Adhesive	Type	Thickness	Thickness	Shelf Life	Outline [x]	Outline [y]	Color	Shelf Life Start	Thickness [custom]	Thickness [custom]	Outline [diameter]
t-Global Technology TG-AH486-100-100-0.5-1A	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet	0.508 mm	0.02 in	12 Months	100 mm	100 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-100-100-5.0-1A	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet	5 mm	0.197 "	12 Months	100 mm	100 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-35-10-7.0-0	3.2 W/m-K	Rectangular		Conductive Pad Sheet			24 Months	35 mm	10 mm	Gray	Date of Purchase	0.276 in	7 mm
t-Global Technology TG-AH486-320-320-10.0-0	3.2 W/m-K	Square		Conductive Pad Sheet	10 mm	0.394 in	24 Months	320 mm	320 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-320-320-5.0-1A	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet	5 mm	0.197 "	12 Months	320 mm	320 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-150-150-3.0-1A	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet	3 mm	0.118 in	12 Months	150 mm	150 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-300-300-10.0-1A	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet	10 mm	0.394 in	12 Months	300 mm	300 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-45-25-4.0-1A	3.2 W/m-K	Rectangular	Adhesive - One Side	Conductive Pad Sheet	4 mm	0.157 in	12 Months	45 mm	25 mm	Gray	Date of Purchase
t-Global Technology TG-AH486-DIA66-0.5-0	3.2 W/m-K	Round		Conductive Pad Sheet	0.5 mm	0.0197 in	24 Months			Gray	Date of Purchase			66 mm
t-Global Technology TG-AH486-30-30-1.5-1A	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet	1.5 mm	0.0591 "	12 Months	30 mm	30 mm	Gray	Date of Purchase
