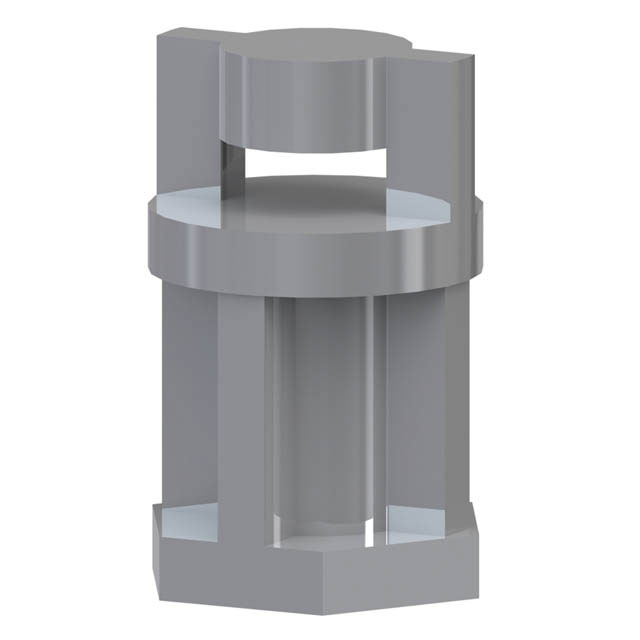

TCEHCBS-8-01
ActiveEssentra Access Solutions
BRD SPT CRNR/EDGE HOLD SCREW MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TCEHCBS-8-01
ActiveEssentra Access Solutions
BRD SPT CRNR/EDGE HOLD SCREW MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TCEHCBS-8-01 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Between Board Height | 0.5 in |
| Holding Type | Corner, Edge Holding |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.12 in |
| Mounting Hole Diameter [diameter] | 3.05 mm |
| Mounting Type | Screw Mount |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.60 | |
| 5 | $ 0.51 | |||
| 10 | $ 0.43 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.29 | |||
Description
General part information
TCEHCBS Series
Board Support Corner, Edge Holding / Screw Mount Nylon 0.500" (12.70mm) 1/2"
Documents
Technical documentation and resources
