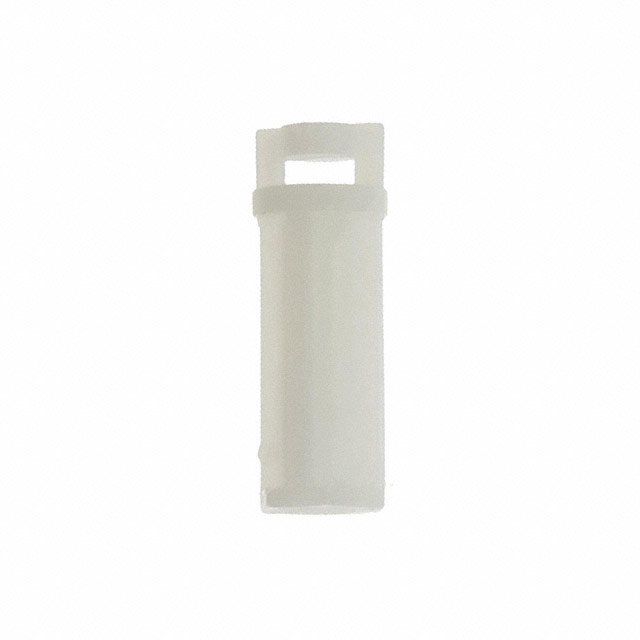

TCEHCBS-12-01
ActiveEssentra Access Solutions
BRD SPT CRNR/EDGE HOLD SCREW MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TCEHCBS-12-01
ActiveEssentra Access Solutions
BRD SPT CRNR/EDGE HOLD SCREW MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TCEHCBS-12-01 |
|---|---|
| Between Board Height | 0.75 in |
| Between Board Height | 0.75 in |
| Between Board Height | 19.05 mm |
| Holding Type | Corner, Edge Holding |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.12 in |
| Mounting Hole Diameter [diameter] | 3.05 mm |
| Mounting Type | Screw Mount |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.70 | |
| 5 | $ 0.60 | |||
| 10 | $ 0.50 | |||
| 25 | $ 0.47 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.34 | |||
Description
General part information
TCEHCBS Series
Board Support Corner, Edge Holding / Screw Mount Nylon 0.750" (19.05mm) 3/4"
