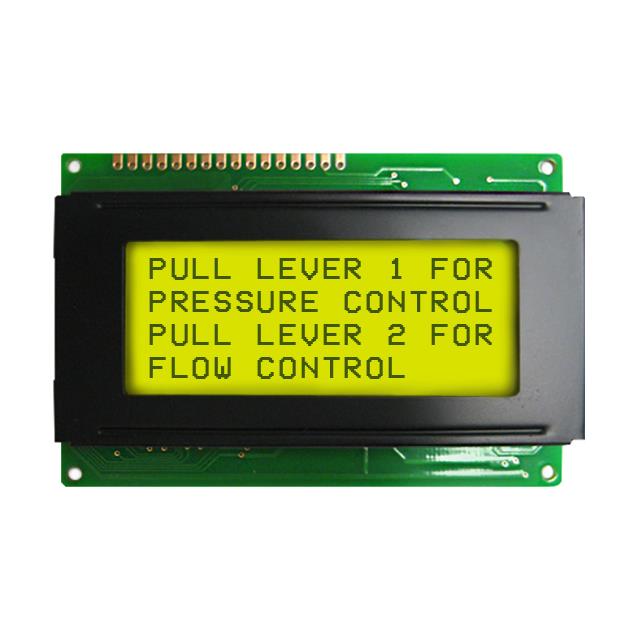

NHD-0416BZ-FL-YBW

Active

Newhaven Display Intl

LCD MOD 64DIG 16X4 TRANS YLW/GRN

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD MOD 64DIG 16X4 TRANS YLW/GRN

Technical Specifications

Parameters and characteristics for this part

Part	Display Type	Background Color	Display Format [y]	Display Format [x]	Display Mode	Voltage - Supply [Max]	Voltage - Supply [Min]	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Character Format [y]	Character Format [x]	Interface	Number of Characters	Text Color	Viewing Area [x]	Viewing Area [y]	Controller Type	Dot Size [x]	Dot Size [y]	Operating Temperature [Min]	Operating Temperature [Max]	Backlight
Newhaven Display Intl NHD-0416BZ-FL-YBW	STN - Super-Twisted Nematic	Green	4	16	Transflective	5.5 V	4.7 V	14.5 mm	60 mm	87 mm	8 Dots	5 Dots	Parallel	64	Blue	61.8 mm	25.2 mm	SPLC780D ST7066U	0.55 mm	0.55 mm	-20 C	70 °C
Newhaven Display Intl NHD-0416BZ-FL-GBW	STN - Super-Twisted Nematic	Green	4	16	Transflective	5.5 V	4.7 V	14.5 mm	60 mm	87 mm	8 Dots	5 Dots	Parallel	64	Blue	61.8 mm	25.2 mm	SPLC780D ST7066U	0.55 mm	0.55 mm	-20 C	70 °C
Newhaven Display Intl NHD-0416BZ-NSW-BBW	STN - Super-Twisted Nematic	Blue	4	16	Transmissive	5.5 V	4.7 V	14.5 mm	60 mm	87 mm	8 Dots	5 Dots	Parallel	64	White	61.8 mm	25.2 mm	SPLC780D ST7066U	0.55 mm	0.55 mm	-20 C	70 °C	LED - White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 16.43

General part information

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 87.00mm x 60.00mm x 14.50mm
