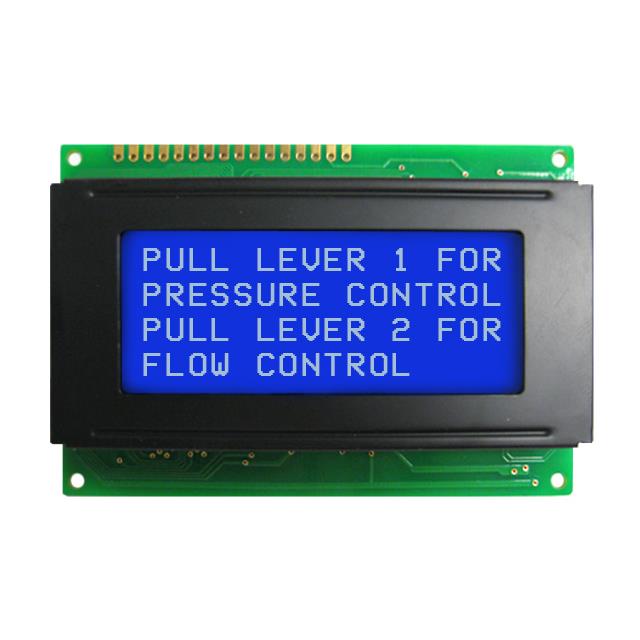

NHD-0416BZ-NSW-BBW

Active

Newhaven Display Intl

LCD MOD 64DIG 16X4 TRANSMISV WHT

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD MOD 64DIG 16X4 TRANSMISV WHT

Technical Specifications

Parameters and characteristics for this part

Part	Display Type	Background Color	Display Format [y]	Display Format [x]	Display Mode	Voltage - Supply [Max]	Voltage - Supply [Min]	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Character Format [y]	Character Format [x]	Interface	Number of Characters	Text Color	Viewing Area [x]	Viewing Area [y]	Controller Type	Dot Size [x]	Dot Size [y]	Operating Temperature [Min]	Operating Temperature [Max]	Backlight
Newhaven Display Intl NHD-0416BZ-FL-YBW	STN - Super-Twisted Nematic	Green	4	16	Transflective	5.5 V	4.7 V	14.5 mm	60 mm	87 mm	8 Dots	5 Dots	Parallel	64	Blue	61.8 mm	25.2 mm	SPLC780D ST7066U	0.55 mm	0.55 mm	-20 C	70 °C
Newhaven Display Intl NHD-0416BZ-FL-GBW	STN - Super-Twisted Nematic	Green	4	16	Transflective	5.5 V	4.7 V	14.5 mm	60 mm	87 mm	8 Dots	5 Dots	Parallel	64	Blue	61.8 mm	25.2 mm	SPLC780D ST7066U	0.55 mm	0.55 mm	-20 C	70 °C
Newhaven Display Intl NHD-0416BZ-NSW-BBW	STN - Super-Twisted Nematic	Blue	4	16	Transmissive	5.5 V	4.7 V	14.5 mm	60 mm	87 mm	8 Dots	5 Dots	Parallel	64	White	61.8 mm	25.2 mm	SPLC780D ST7066U	0.55 mm	0.55 mm	-20 C	70 °C	LED - White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 87.00mm x 60.00mm x 14.50mm
