M83513/03-D04N

Active

Cinch Connectivity Solutions Trompeter

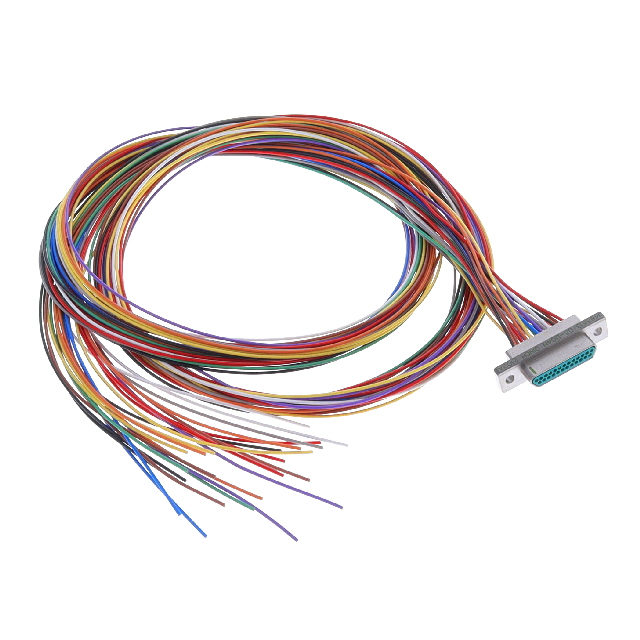

MICRO D CABLE ASSEMBLY, MICRO-D PLUG TO FREE END, 25 POSITIONS, 36 ", 914 MM, MULTI-COLORED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

M83513/03-D04N

Active

Cinch Connectivity Solutions Trompeter

MICRO D CABLE ASSEMBLY, MICRO-D PLUG TO FREE END, 25 POSITIONS, 36 ", 914 MM, MULTI-COLORED

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M83513/03-D04N

1st Connector	Plug, Male Pins
2nd Connector	Individual Wire Leads
Color	Multiple, Individual
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	3 ft
Length [x]	914.4 mm
Type	D-Type, Micro-D

M83513/03 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Color	Type	2nd Connector	Number of Positions	Contact Finish	1st Connector
Cinch Connectivity Solutions Trompeter M83513/03-A03N	50 µin	1.27 µm	457.2 mm	1.5 ft	Individual Multiple	D-Type Micro-D	Individual Wire Leads	9	Gold	Plug Male Pins
Cinch Connectivity Solutions Trompeter M83513/03-C12C	50 µin	1.27 µm	914.4 mm	3 ft	Individual Multiple	D-Type Micro-D	Individual Wire Leads	21	Gold	Plug Male Pins
Cinch Connectivity Solutions Trompeter M83513/03-H12N	50 µin	1.27 µm	914.4 mm	3 ft	Individual Multiple	D-Type Micro-D	Individual Wire Leads	100	Gold	Plug Male Pins
Cinch Connectivity Solutions Trompeter M83513/03-G03N	50 µin	1.27 µm	457.2 mm	1.5 ft	Individual Multiple	D-Type Micro-D	Individual Wire Leads	51	Gold	Plug Male Pins
Cinch Connectivity Solutions Trompeter M83513/03-D04N	50 µin	1.27 µm	914.4 mm	3 ft	Individual Multiple	D-Type Micro-D	Individual Wire Leads		Gold	Plug Male Pins
Cinch Connectivity Solutions Trompeter M83513/03-B12C	50 µin	1.27 µm	914.4 mm	3 ft	Individual Multiple	D-Type Micro-D	Individual Wire Leads	15	Gold	Plug Male Pins
Cinch Connectivity Solutions Trompeter M83513/03-C04N	50 µin	1.27 µm	914.4 mm	3 ft	Individual Multiple	D-Type Micro-D	Individual Wire Leads	21	Gold	Plug Male Pins
Cinch Connectivity Solutions Trompeter M83513/03-F03N	50 µin	1.27 µm	457.2 mm	1.5 ft	Individual Multiple	D-Type Micro-D	Individual Wire Leads	37	Gold	Plug Male Pins
Cinch Connectivity Solutions Trompeter M83513/03-F12N	50 µin	1.27 µm	914.4 mm	3 ft	Individual Multiple	D-Type Micro-D	Individual Wire Leads	37	Gold	Plug Male Pins
Cinch Connectivity Solutions Trompeter M83513/03-G03C	50 µin	1.27 µm	457.2 mm	1.5 ft	Individual Multiple	D-Type Micro-D	Individual Wire Leads	51	Gold	Plug Male Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 204.19
		1	$ 144.47
		10	$ 122.81
		10	$ 189.22
		25	$ 182.41
		25	$ 115.13
		50	$ 109.64
		50	$ 181.05
	Bulk	1	$ 960.78
Newark	Each	5	$ 220.50
		10	$ 210.00
		25	$ 204.00
		50	$ 192.00

Description

General part information

M83513/03 Series

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 3.00' (914.40mm) Plug, Male Pins to Individual Wire Leads

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
