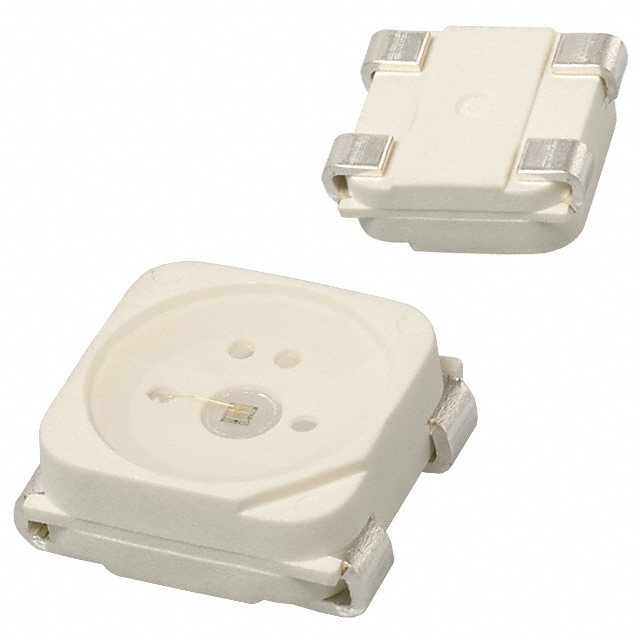

SML-LX1110USBC-BTR

Active

Lumex Opto/Components Inc.

LED TITANBRITE BLUE 470NM 4PLCC

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED TITANBRITE BLUE 470NM 4PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LX1110USBC-BTR

Color	Blue
Current - Max [Max]	350 mA
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	4.4 mm
Height - Seated (Max) [Max] [z]	0.173 in
Lumens/Watt @ Current - Test	6 lm/W
Luminous Flux @ Current/Temperature	7 lm
Mounting Type	Surface Mount
Package / Case	4-SMD, J-Lead
Size / Dimension [x]	10 mm
Size / Dimension [x]	0.394 "
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Supplier Device Package	4-PLCC
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.5 V
Wavelength	470 nm

Part	Wavelength	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Current - Test	Color	Current - Max [Max]	Supplier Device Package	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Luminous Flux @ Current/Temperature	Thermal Resistance of Package [diameter]	Flux @ 25°C, Current - Test
Lumex Opto/Components Inc. SML-LX1110USBC-BTR	470 nm	6 lm/W	3.5 V	120 °	350 mA	Blue	350 mA	4-PLCC	Surface Mount	4-SMD J-Lead	10 mm	0.394 in	10 mm	0.394 "	4.4 mm	0.173 in	7 lm
Lumex Opto/Components Inc. SML-LX1110UPGC-BTR	525 nm	36 lm/W	3.3 V	120 °	350 mA	Green	350 mA	4-PLCC	Surface Mount	4-SMD J-Lead	10 mm	0.394 in	10 mm	0.394 "	4.4 mm	0.173 in	42 lm	47 °C/W
Lumex Opto/Components Inc. SML-LX1110SYC-BTR	590 nm	30 lm/W	2 V	120 °	350 mA	Yellow	350 mA	4-PLCC	Surface Mount	4-SMD J-Lead	10 mm	0.394 in	10 mm	0.394 "	4.4 mm	0.173 in	21 lm
Lumex Opto/Components Inc. SML-LX1110UWC-BTR		18 lm/W	3.5 V	120 °	350 mA	White	500 mA	4-PLCC	Surface Mount	4-SMD J-Lead	10 mm	0.394 in	10 mm	0.394 "	4.4 mm	0.173 in			22 lm
Lumex Opto/Components Inc. SML-LX1110SOC-BTR	620 nm	16 lm/W	2 V	120 °	350 mA		350 mA	4-PLCC	Surface Mount	4-SMD J-Lead	10 mm	0.394 in	10 mm	0.394 "	4.4 mm	0.173 in	11 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color TitanBrite™ Blue 470nm (Typ) 4-SMD, J-Lead
