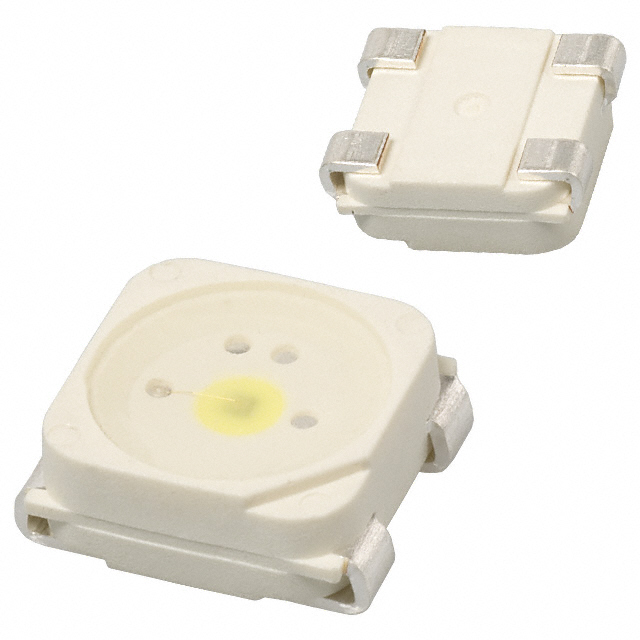

SML-LX1110UWC-BTR

Active

Lumex Opto/Components Inc.

LED TITANBRITE WHITE 4PLCC

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED TITANBRITE WHITE 4PLCC

Technical Specifications

Parameters and characteristics for this part

Part	Wavelength	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Current - Test	Color	Current - Max [Max]	Supplier Device Package	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Luminous Flux @ Current/Temperature	Thermal Resistance of Package [diameter]	Flux @ 25°C, Current - Test
Lumex Opto/Components Inc. SML-LX1110USBC-BTR	470 nm	6 lm/W	3.5 V	120 °	350 mA	Blue	350 mA	4-PLCC	Surface Mount	4-SMD J-Lead	10 mm	0.394 in	10 mm	0.394 "	4.4 mm	0.173 in	7 lm
Lumex Opto/Components Inc. SML-LX1110UPGC-BTR	525 nm	36 lm/W	3.3 V	120 °	350 mA	Green	350 mA	4-PLCC	Surface Mount	4-SMD J-Lead	10 mm	0.394 in	10 mm	0.394 "	4.4 mm	0.173 in	42 lm	47 °C/W
Lumex Opto/Components Inc. SML-LX1110SYC-BTR	590 nm	30 lm/W	2 V	120 °	350 mA	Yellow	350 mA	4-PLCC	Surface Mount	4-SMD J-Lead	10 mm	0.394 in	10 mm	0.394 "	4.4 mm	0.173 in	21 lm
Lumex Opto/Components Inc. SML-LX1110UWC-BTR		18 lm/W	3.5 V	120 °	350 mA	White	500 mA	4-PLCC	Surface Mount	4-SMD J-Lead	10 mm	0.394 in	10 mm	0.394 "	4.4 mm	0.173 in			22 lm
Lumex Opto/Components Inc. SML-LX1110SOC-BTR	620 nm	16 lm/W	2 V	120 °	350 mA		350 mA	4-PLCC	Surface Mount	4-SMD J-Lead	10 mm	0.394 in	10 mm	0.394 "	4.4 mm	0.173 in	11 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting TitanBrite™ White 3.5V 350mA 120° 4-SMD, J-Lead
